3D/2D Laser Machine
Request a Quote
Model: GW-A02P
Features
- This laser engraving machine can engrave any text or pattern into acrylic, PC, PET, PS and other transparent plastic items with a fast engraving speed, high marking precision and excellent processing quality.
- The laser engraving machine performs 3D and 2D images engraving.
- A five-axis linkage computer control system achieves a high engraving precision with an easy operation.
- The 3D/2D laser engraver features easy and flexible operations, allowing just a single person to simultaneously operate multiple 3D laser engraving machines, significantly reducing labor costs.
- The 3D laser engraving machine features a low power consumption—it requires only 400W and 220V voltage.
Technical Parameters
| Model | GW-A02P |
| Laser pump | Diode pump laser |
| Laser power | 2W or 3W |
| Wavelength | 532 |
| Max. energy on one pulse | 1.2mj |
| Beam quality | M2< 1.5 |
| Laser frequency | Standard:3000HZ Optional: 4000HZ, 6000HZ |
| Q-switch | Acousto-optic Q-switch (AOQS) |
| Pulse width | 7ns |
| Max. engraving area | 300mm*400mm*150mm |
| Max. engraving speed | Standard: 3000 points/s Optional: 4000 points/s, 5800 points/s |
| Head of 3D laser machine | Single head |
| Power supply | 220V±10%/50Hz |
| Cooling | Air cooling |
| Laser resolution | 500-1200DPI |
| Focal distance | Standard:100mm Optional: 120mm |
| Laser beam spot diameter | 0.02mm |
| Laser lifetime | 20000 h |
| Applicable materials | Engraving: transparent materials like acrylic, crystal, glass, zircon, PC/PET sheet, etc. Marking: non-transparent materials like plastic, wood, metal, rubber and more. |
| Working environment | Clean, dust-free and no vibration. It is recommended to work in an air-conditioned environment. |
| Operating temperature | 10-30°C |
| Dimensions | 790*940*1000MM |
| Motion | Five-axis linkage |
| Machine weight | 200KG |
| Average power | 400W |
| Warranty | One-year warranty, lifetime support service and optical components are not covered by the warranty. |
| Automatic file protection of power outage | Yes |
| Multi crystals engraving with one file | Yes |
Note: Standard 3D engraving laser machine model parameters are shown above. We also offer customized 3D laser engraving and marking solutions according to specific customer requirements.

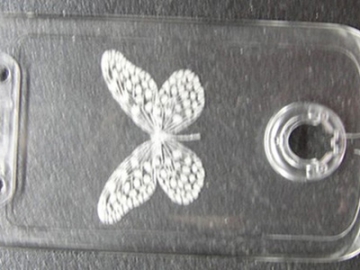

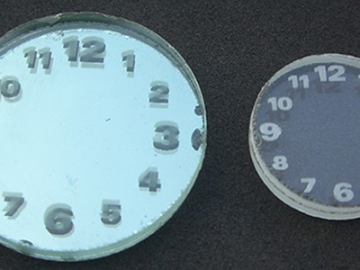

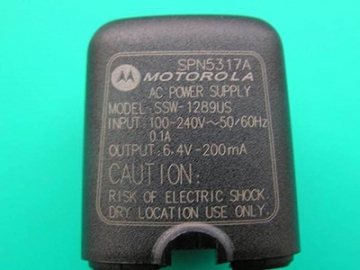

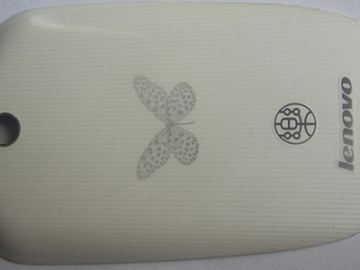

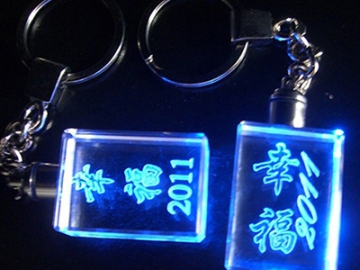

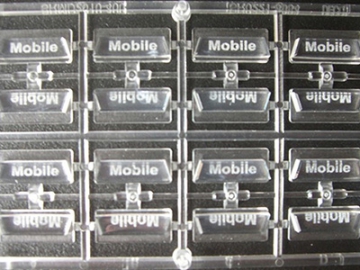

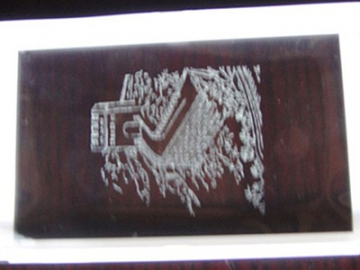

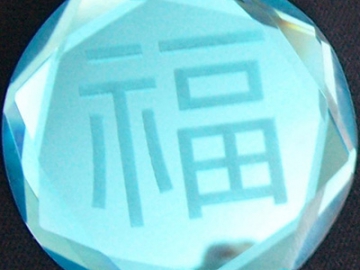

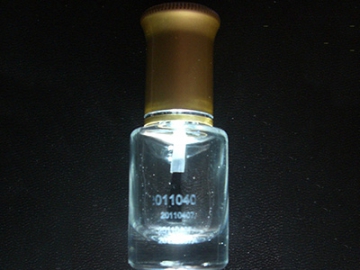

Sample photos gallery
