3D Laser Engraver, 3D engraving system
Model: GW-B06P
Features
  • This laser engraving machine engraves 2D and 3D sub-surface images inside acrylic, glass, crystal, and other transparent materials.
  • The five-axis linkage computer control system delivers a high engraving precision and easy operation.
  • The open design working platform enables the laser engraver to process workpieces without any size limits.
  • The 3D/2D laser engraving equipment features an easy operation, excellent flexibility, and a low power consumption.
Technical Parameters
Model GW-B06P
Laser pump Diode pump laser
Laser power 2W or 3W
Wavelength 532
Max. energy on one pulse 1.2mj
Beam quality M2< 1.5
Laser frequency Standard:3000HZ Optional: 4000HZ, 6000HZ
Q-switch Acousto-optic Q-switch (AOQS)
Pulse width 7ns
Max. engraving area 1500mm*3000mm*100mm, 2000mm*3600mm*100m, or custom engraving area up to 4000mm*6000mm
Max. engraving speed Standard: 3000 points/s Optional: 4000 points/s, 5800 points/s
Head of 3D laser machine Single head
Power supply 220V±10%/50H or 380V±10%/50Hz
Cooling Air cooling
Laser resolution 500-1200DPI
Focal distance Standard:100mm Optional: 120mm, 165mm
Laser beam spot diameter 0.02mm
Laser lifetime 20000 h
Applicable materials Engraving: transparent materials like acrylic, crystal, glass, zircon, PC/PET sheet, etc. Marking: non-transparent materials like plastic, wood, metal, rubber and more.
Working environment Clean, dust-free and no vibration. It is recommended to work in an air-conditioned environment.
Operating temperature 10-30°C
Dimensions Machine dimensions vary according to the engraving area.
Motion Five-axis linkage
Machine weight 2000KG
Average power 1000W
Warranty One-year warranty, lifetime support service and optical components are not covered by the warranty.
Automatic file protection of power outage Yes
Multi crystals engraving with one file Yes

Note: Standard 3D engraving laser machine model parameters are shown above. We also offer customized 3D laser engraving and marking solutions according to specific customer requirements.

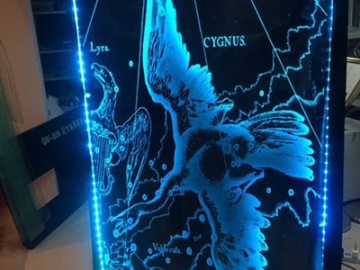

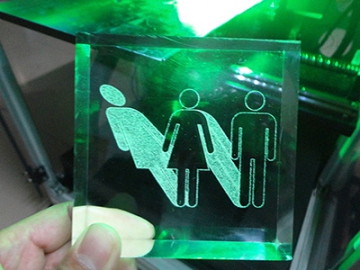

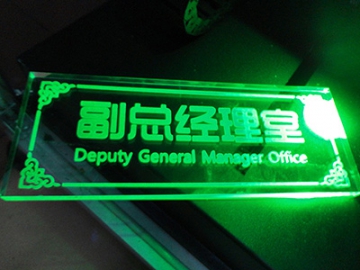

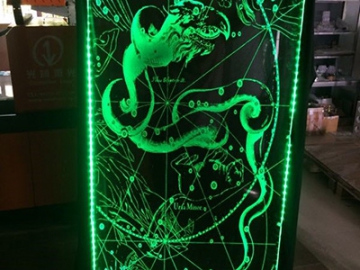

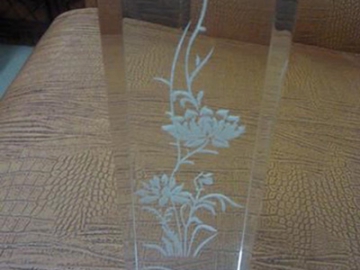

Sample photos gallery
