3D/2D Engraving Laser Machine
Request a Quote
Model: GW-C03
Features
- The GW-C03 laser engraving machine automatically engraves 2D and 3D images into crystal.
- The 3D/2D laser engraving machine features simple operations, user-friendly interface, and complete functions.
- The laser head and working platform are installed separately, but both are exceedingly flexible. An easy work platform changeover also allows the laser engraving machine to perform different functions and handle different materials.
- Featuring great flexibility, the 3D/2D engraving laser machine is able to process materials in a variety of shapes and sizes, with a single auto engraving area of a circular 100mm. The laser engraver meets complex and diverse processing requirements from a variety of industries, including glass, display cases, fish tanks, and more.
Technical Parameters
| Model | GW-C03 |
| Laser pump | Diode pump laser |
| Laser power | 2W or 3W |
| Wavelength | 532 |
| Max. energy on one pulse | 1.2mj |
| Beam quality | M2< 1.5 |
| Laser frequency | Standard:3000HZ Optional: 4000HZ, 6000HZ |
| Q-switch | Acousto-optic Q-switch (AOQS) |
| Pulse width | 7ns |
| Max. engraving area | 300mm*400mm*150mm |
| Max. engraving speed | Standard: 3000 points/s Optional: 4000 points/s, 5800 points/s |
| Head of 3D laser machine | Single head |
| Power supply | 220V±10%/50Hz |
| Cooling | Air cooling |
| Laser resolution | 500-1200DPI |
| Focal distance | Standard:100mm Optional: 120mm, 165mm |
| Laser beam spot diameter | 0.02mm |
| Laser lifetime | 20000 h |
| Applicable materials | Engraving: transparent materials like acrylic, crystal, glass, zircon, PC/PET sheet, etc. Marking: non-transparent materials like plastic, wood, metal, rubber and more. |
| Working environment | Clean, dust-free and no vibration. It is recommended to work in an air-conditioned environment. |
| Operating temperature | 10-30°C |
| Dimensions | 740*600*1280MM |
| Motion | Z-axis linkage |
| Machine weight | 80KG |
| Average power | 300W |
| Warranty | One-year warranty, lifetime support service and optical components are not covered by the warranty. |
| Automatic file protection of power outage | Yes |
| Multi crystals engraving with one file | Yes |
Note: Standard 3D engraving laser machine model parameters are shown above. We also offer customized 3D laser engraving and marking solutions according to specific customer requirements.

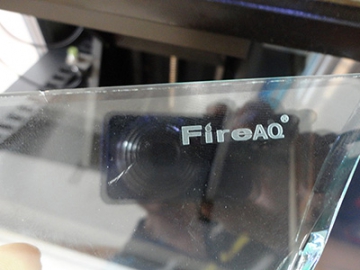

Sample photos gallery

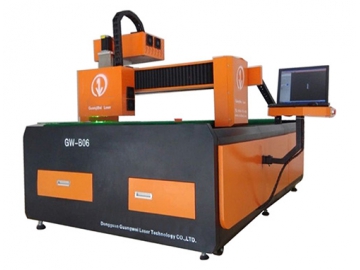

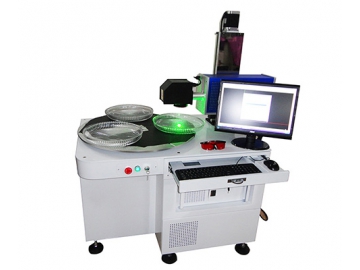

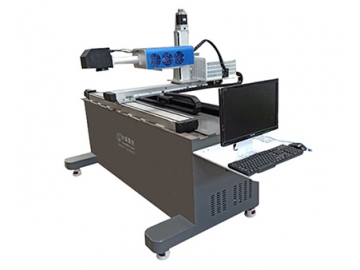

Related products
