3D Laser Engraver, 3D engraving system
Model: GW-C01
Features
  • The laser engraving machine can engrave 2D or 3D sub-surface images onto crystal surfaces.
  • A rotary platform is installed for automatic engraving. The operator simply places products on the rotary platform, and the laser head will carry out continuous marking on the rotating object. This significantly improves the engraving efficiency, thus reducing labor intensity and saving labor costs.
  • The laser engraving machine combines laser marking and laser engraving functions, making it ideal for the production of 3D crystal models, personalized crystal keepsakes, photo crystal blocks, 3D laser gifts, 3D laser engraved awards and trophies, and more.
  • The 3D/2D engraving laser machine processes different materials, including both transparent and non-transparent materials, such as crystal, glass, acrylic, zircon, metal, wood, plastic, rubber, paper, leather, bamboo and so on.
Technical Parameters
Model GW-C01
Laser pump Diode pump laser
Laser power 1.5W
Wavelength 532
Max. energy on one pulse 1.2mj
Beam quality M2< 1.5
Laser frequency Standard:3000HZ
Q-switch Acousto-optic Q-switch (AOQS)
Pulse width 7ns
Max. engraving area ¢100mm
Max. engraving speed 180000 points/s
Head of 3D laser machine Single head
Power supply 220V±10%/50Hz
Cooling Air cooling
Laser resolution 500-1200DPI
Focal distance Standard:100mm
Laser beam spot diameter 0.02mm
Laser lifetime 20000 h
Applicable materials Engraving: transparent materials like acrylic, crystal, glass, zircon, PC/PET sheet, etc. Marking: non-transparent materials like plastic, wood, metal, rubber and more.
Working environment Clean, dust-free and no vibration
Dimensions 110*97*1580mm
Machine weight 90KG

Note: Standard 3D engraving laser machine model parameters are shown above. We also offer customized 3D laser engraving and marking solutions according to specific customer requirements.

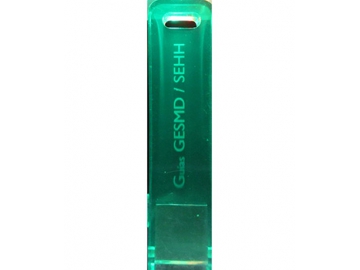

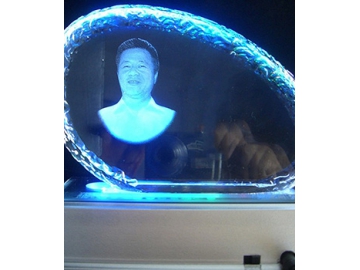

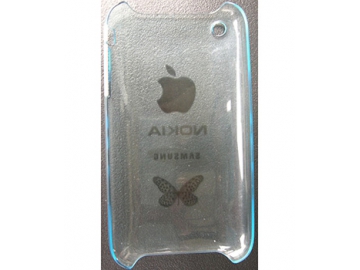

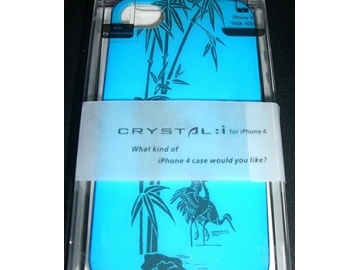

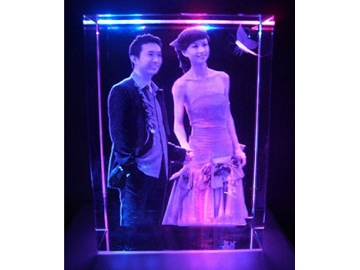

Sample photos gallery
