3D Laser Engraver, 3D engraving system
Model: GW-C04
Features
  • The GW-C04 3D/2D engraving laser machine is used for the rotary engraving of spherical and cylindrical workpieces such as wine bottles, lampshades, flashlights, and more.
  • Automatic 3D and 2D engraving functions
  • Featuring a great flexibility and adaptability, the laser engraving machine will engrave glass, crystal, and acrylic, as well as engrave on metal, plastic, paper, wood, leather, and other materials.
  • The laser engraver is designed with an easy operation.
  • The max one-time auto engraving area is 600*1200mm.
Technical Parameters
Model GW-C04
Laser pump Diode pump laser
Laser power 2W or 3W
Wavelength 532
Max. energy on one pulse 1.2mj
Beam quality M2< 1.5
Laser frequency Standard:3000HZ Optional: 4000HZ, 6000HZ
Q-switch Acousto-optic Q-switch (AOQS)
Pulse width 7ns
Max. engraving area 700mm*1200mm*150mm
Max. engraving speed Standard: 3000 points/s Optional: 4000 points/s, 5800 points/s
Head of 3D laser machine Single head
Power supply 220V±10%/50Hz
Cooling Air cooling
Laser resolution 500-1200DPI
Focal distance Standard:100mm Optional: 120mm, 165mm
Laser beam spot diameter 0.02mm
Laser lifetime 20000 h
Applicable materials Engraving: transparent materials like acrylic, crystal, glass, zircon, PC/PET sheet, etc. Marking: non-transparent materials like plastic, wood, metal, rubber and more.
Working environment Clean, dust-free and no vibration. It is recommended to work in an air-conditioned environment.
Operating temperature 10-30°C
Dimensions 890*1500*1600MM
Motion Z-axis linkage
Machine weight 500KG
Average power 400W
Warranty One-year warranty, lifetime support service and optical components are not covered by the warranty.
Automatic file protection of power outage Yes
Multi crystals engraving with one file Yes

Note: Standard 3D engraving laser machine model parameters are shown above. We also offer customized 3D laser engraving and marking solutions according to specific customer requirements.

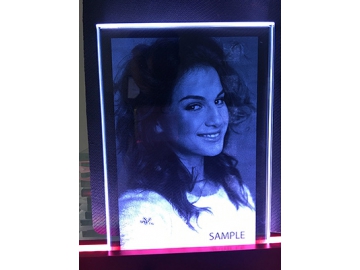

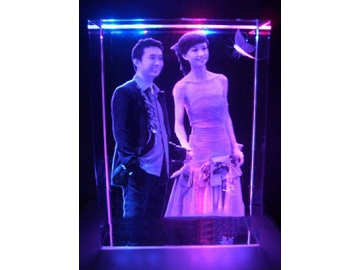

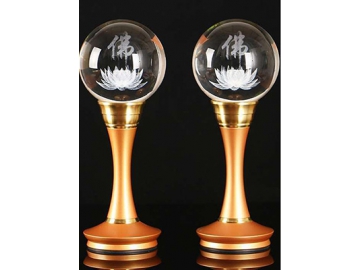

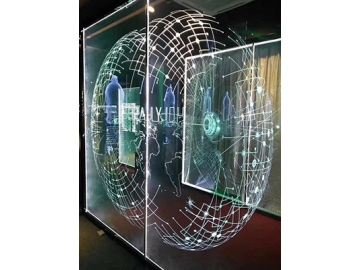

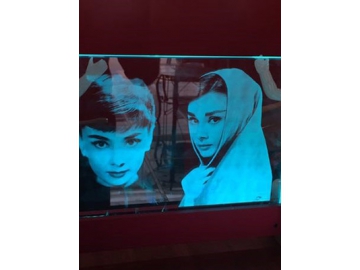

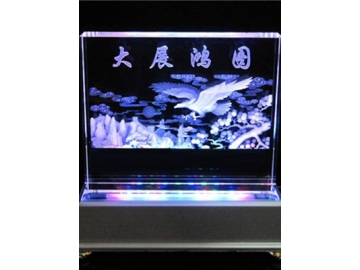

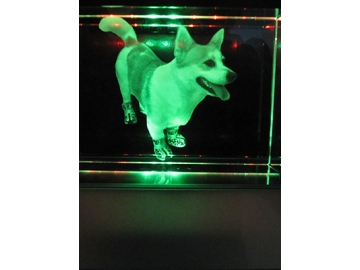

Sample photos gallery
