3D Laser Engraver, 3D engraving system
Model: GW-A02C
Features
  • The super speed 3D/2D engraving laser machine engraves any text, patterns, or images onto a variety of transparent materials, including acrylic, crystal, glass, zircon, and more. The laser engraver is also used for marking non-transparent materials, including plastic, metal, organic minerals, and more.
  • The 3D laser engraving machine engraves both 2D and 3D images for the production of photo crystal blocks, 3D laser gifts, 3D laser engraved awards and trophies, crystal models, and more.
  • X, Y, Z axis coordinate control delivers a higher engraving precision and better image quality.
  • The laser engraver features easy and flexible operations, allowing just a single person to simultaneously operate multiple machines, thus significantly reducing labor costs.
  • The super speed laser engraving machine is designed with a fast engraving speed, as well as a consistent and accurate laser point generation. A high quality, 368mm 3D portrait image can be engraved within three minutes.
  • This 3D laser engraver features a low energy consumption.
Technical Parameters
Model Super Speed 3D/2D Engraving Laser Machine GW-A02C
Laser pump Diode pump laser
Laser power 2W or 3W
Wavelength 532
Max. energy on one pulse 1.2mj
Beam quality M2< 1.5
Laser frequency Standard:3000HZ Optional: 4000HZ, 6000HZ
Q-switch Acousto-optic Q-switch (AOQS)
Pulse width 7ns
Max. engraving area 300mm*400mm*150mm
Max. engraving speed Standard: 3000 points/s Optional: 4000 points/s, 5800 points/s
Head of 3D laser machine Single head
Power supply 220V±10%/50Hz
Cooling Air cooling
Laser resolution 500-1200DPI
Focal distance Standard:100mm Optional: 120mm
Laser beam spot diameter 0.02mm
Laser lifetime 20000 h
Applicable materials Engraving: transparent materials like acrylic, crystal, glass, zircon, PC/PET sheet, etc. Marking: non-transparent materials like plastic, wood, metal, organic minerals and more.
Working environment Clean, dust-free and no vibration. It is recommended to work in an air-conditioned environment.
Operating temperature 10-30°C
Dimensions 790*940*1000mm
Motion Five-axis linkage
Machine weight 200KG
Average power 400W
Warranty One-year warranty, lifetime support service and optical components are not covered by the warranty.
Automatic file protection of power outage Yes
Multi crystals engraving with one file Yes

Note: Standard 3D engraving laser machine model parameters are shown above. We also offer customized 3D laser engraving and marking solutions according to specific customer requirements.

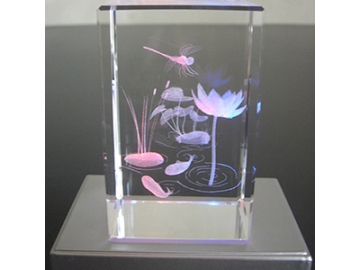

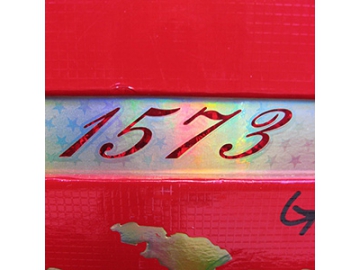

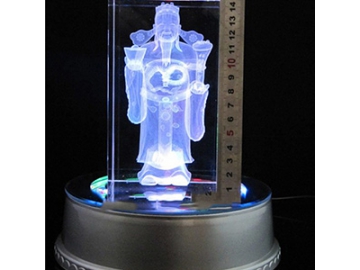

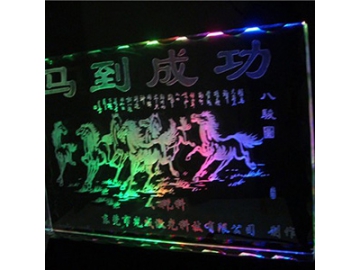

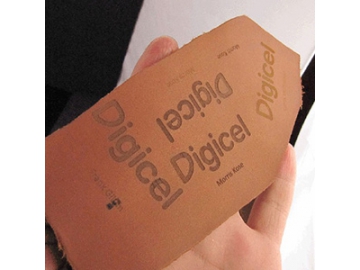

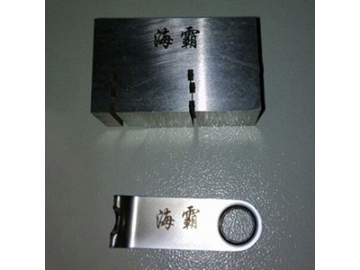

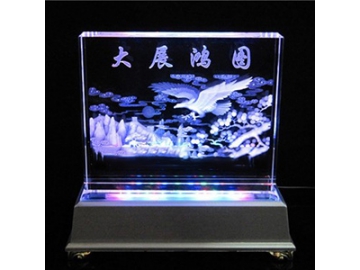

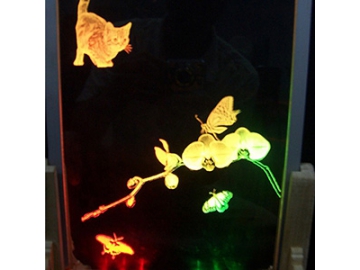

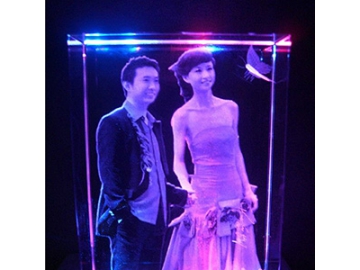

Sample photos gallery
Get in touch with usAuto IndustryLighting ProductsLaser Engraving of Plastics

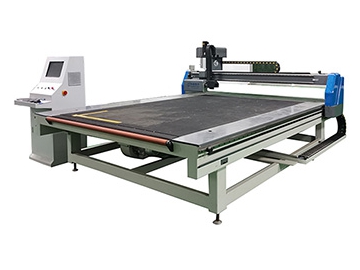

Related products
