3D Laser Engraver, 3D engraving system
Model: GW-B06C
Features
  • This fast speed 3D/2D engraving laser machine processes a variety of materials, including crystal, glass, acrylic, zircon, and other transparent materials. It will also engrave on metal, wood, plastic, and other non-transparent materials.
  • The laser engraving machine can create 3D and 2D engravings for 3D crystal models, personalized crystal keepsakes, photo crystal blocks, 3D laser gifts, 3D laser engraved awards and trophies, and more.
  • The open design allows the crystal engraving machine to process materials with a size much larger than the machine itself, thus improving the work flexibility.
  • The laser engraver features a simple operation and easy maintenance.
  • The fast speed laser engraving machine is designed with a high engraving speed, as well as a consistent and accurate laser point generation.
  • The machine appearance and functions are customizable according to customer requirements.
Technical Parameters
Model GW-B06C
Laser pump Diode pump laser
Laser power 2W or 3W
Wavelength 532
Max. energy on one pulse 1.2mj
Beam quality M2< 1.5
Laser frequency Standard:3000HZ Optional: 4000HZ, 6000HZ
Q-switch Acousto-optic Q-switch (AOQS)
Pulse width 7ns
Max. engraving area 1500mm*3000mm*100mm, 2000mm*3600mm*100m, or custom engraving area up to 4000mm*6000mm
Max. engraving speed Standard: 3000 points/s Optional: 4000 points/s, 5800 points/s
Head of 3D laser machine Single head
Power supply 220V±10%/50Hz, 380V±10%/50Hz optional
Cooling Air cooling
Laser resolution 500-1200DPI
Focal distance Standard:100mm Optional: 120mm, 165mm
Laser beam spot diameter 0.02mm
Laser lifetime 20000 h
Applicable materials Engraving: transparent materials like acrylic, crystal, glass, zircon, PC/PET sheet, etc. Marking: non-transparent materials like plastic, wood, metal, organic minerals and more.
Working environment Clean, dust-free and no vibration. It is recommended to work in an air-conditioned environment.
Operating temperature 10-30°C
Dimensions Machine dimensions vary according to the engraving area.
Motion Five-axis linkage
Machine weight 2000KG
Average power 1000W
Warranty One-year warranty, lifetime support service and optical components are not covered by the warranty.
Automatic file protection of power outage Yes
Multi crystals engraving with one file Yes

Note: Standard 3D engraving laser machine model parameters are shown above. We also offer customized 3D laser engraving and marking solutions according to specific customer requirements.

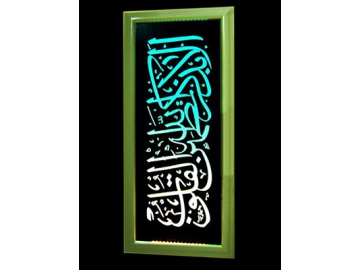

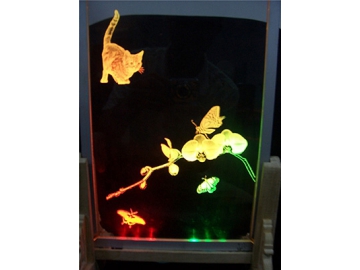

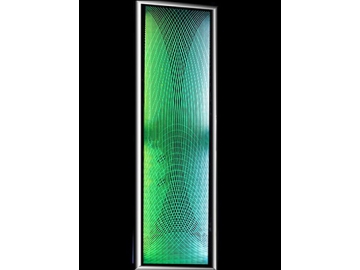

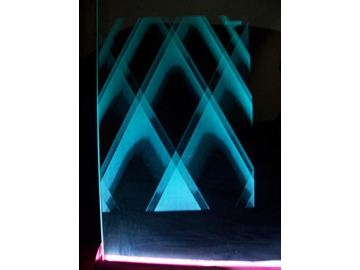

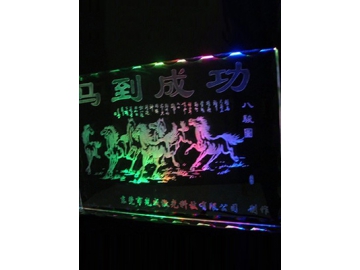

Sample photos gallery
