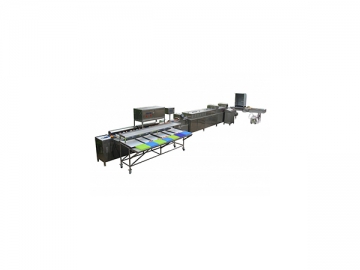

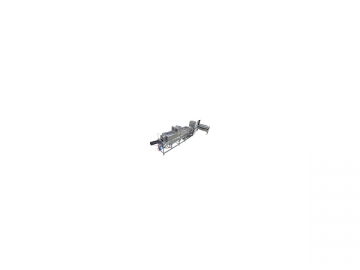

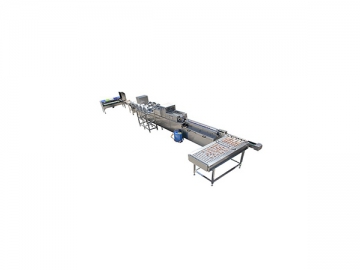

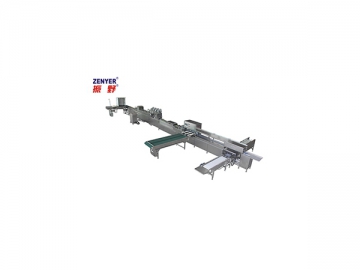

ZENYER 300A egg processing line is comprised of the , and . This model has a maximum capacity of 3000 eggs/hour, and will carry out candling, sanitizer spraying, brush washing and drying, UV sterilizing, candling, grading, and optional printing, all at a high production efficiency.

The machine body is made of stainless steel, which allows for a better durability and corrosion resistance. The full processing line can be installed either in a straight line, or at a right angle.

Specifications
Product name Egg Processing Line
Product code 300A
Model ZYL-J1-J2
Capacity 3000 eggs/hour
Material Stainless steel
Power 6.3 KW
Voltage 220V,50HZ, single phase OR 380V,50HZ, three phase

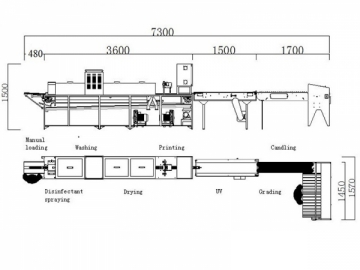

Dimension(L×W×H) 7.3 ×1.57×1.5 M
Net weight 800KG
Gross weight 950KG
Function Manual loading(candling), sanitizer spraying, brush washing and drying, (printing), UV sterilizing, candling, grading
Operation Flow
  • Manual loading (candling)
  • Sanitizer
  • Washing
  • Drying
  • Printing(Option)
  • UV sterilizing
  • Candling
  • Grading ( mechanical weighing)

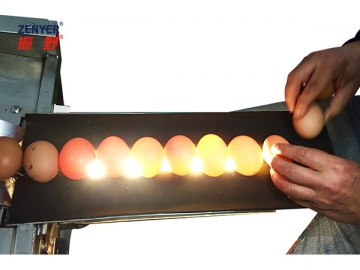

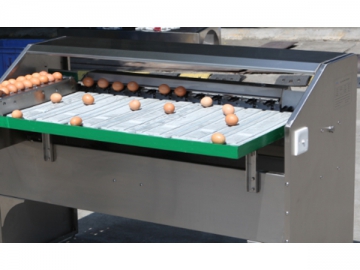

    Manual loading (candling)

    Workers place eggs on the loading ramp, while the eye detects broken eggs through the LED light detector of the loading ramp, avoiding broken eggs entering the washing machine.

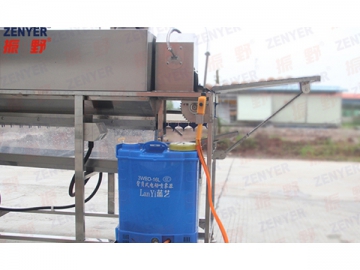

    Sanitizer

    Sanitizer equipment at the washer front will spray a disinfectant or detergent onto the eggs.

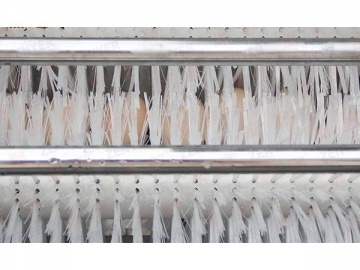

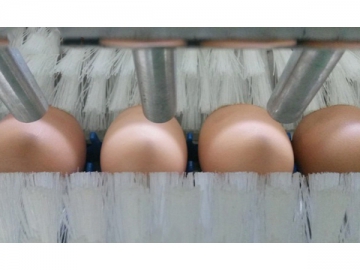

    Washing

    Eggs are fully cleaned using brushes and a warm water spray. The brush modules are flexible, with adjustments capable of being made to the brush distance, position, and speed.

    Drying

    Eggs are perfectly dried using a dry brush and a strong air pressure.

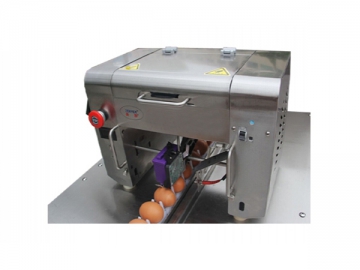

    Printing (option)

    ZENYER can be attached to the end of the egg washer, allowing users to print their farm name, logo, date, best before date and other information.

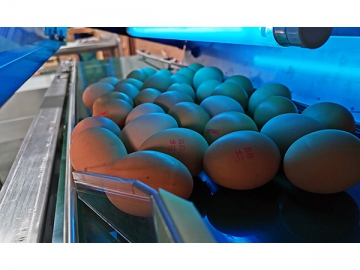

    UV sterilizing

    UV sterilization equipment eliminates any bacteria on the egg surface.

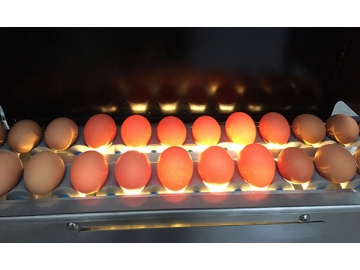

    Candling

    Eggs will run through LED lights for a candling purpose on the belt conveyor, allowing employees to easily remove any unqualified eggs that leak or are cracked.

    Grading

    Eggs are mechanically weighed using a leverage principle to ensure a precision sorting, with a maximum of 7 grades and a precision within ±1g.
