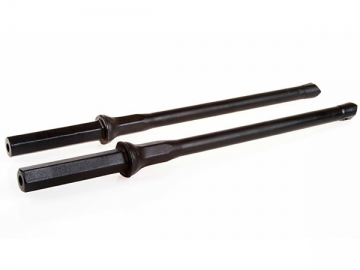

Plug Hole Rod
Request a Quote
About Us: http://max-drilling.com
Plug hole rods are widely used in boring and drilling in stone quarrying, mineral quarrying, water conservancy, transportation, military industry, geology and civil engineering. They are most often used to be used for drilling bore holes in diameters ranging from 24 to 44mm.
According to different application needs, different lengths are available.
(1)Steel grade: 95CrMo equivalent to SANDBAR 20 or C253, 55SiMnMo
(2)Shank size: hex19mm, hex.22mm
(3)Head Diameter: 24mm-44m
| Plug hole rod | L | Part No. | Weight Kg | |
| mm | Ft. inch | |||

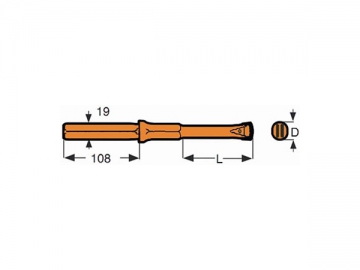

| HEX19*108 | 230 250 300 350 400 500 | - 91/8 " - 9 7/8" - 11 7/8" 1' 1 3/4" 1' 3 3/4" 1' 7 3/4" | 01190231 01190251 01190301 01190351 01190401 01190501 | 1.09 1.05 1.20 1.35 1.50 1.80 |
| HEX19*82.5 | 230 250 300 350 400 500 | - 9 1/8 " - 9 7/8" - 11 7/8" 1' 1 3/4" 1' 3 3/4" 1' 7 3/4" | 01190232 01190252 01190302 01190352 01190402 01190502 | 0.77 0.79 0.84 0.89 0.94 1.04 |

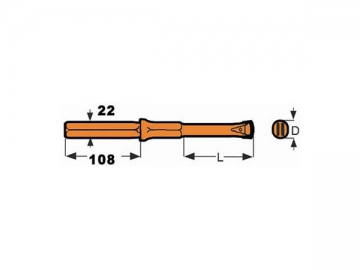

| HEX22*108 | 230 250 300 350 400 500 | - 9 1/8 " - 9 7/8" - 11 7/8" 1' 1 3/4" 1' 3 3/4" 1' 7 3/4" | 01220231 01220251 01220301 01220351 01220401 01220501 | 1.09 1.15 1.29 1.43 1.57 1.84 |

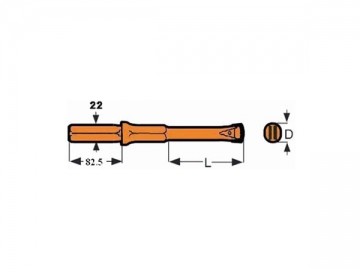

| HEX22*82.5 | 230 250 300 350 400 500 | - 9 1/8 " - 9 7/8" - 11 7/8" 1' 1 3/4" 1' 3 3/4" 1' 7 3/4" | 01220232 01220252 01220302 01220352 01220402 01220502 | 1.15 1.25 1.50 1.75 2.00 2.50 |
