Integral drill steel rods are used by hand held drill machines in underground mining and for small hole drilling. They are often used on small power rock drills, such as air leg rock drills and hand held rock drills. According to application needs, different lengths are available, ranging from 600 to 9,600mm.

Features & Benefits
Wide selection of rods
High quality materials

Specifications:
(1)Steel grade: 95CrMo equivalent to SANDBAR 20 or C253, 55SiMnMo

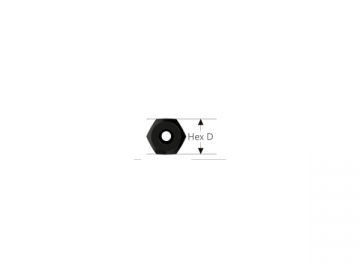

(2)Shank size: hex19mm hex.22mm, hex.25mm including plug hole rod
(3)Head Diameter: 24mm-44mm
(4)Length: 0.4m-6.4m
(5)Package: in wooden case or in bundles.
(6)Productivity: 20000pcs / month

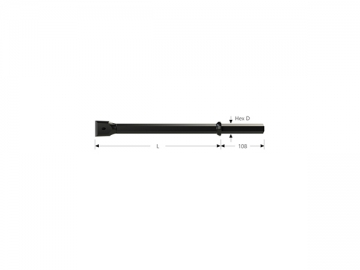

Integral drill steels

Series Dimensions L Dimensions D Part no
mm ft in mm in
H22*108 mm(4 1/4")
11 800
1600
2400
3200
4000
4800
2
5
7
10
13
5
7
3
10
6
1
-
34
33
32
31
30
29
1 11/32
1 19/64
1 1/4
1 7/32
1 3/16
1 9/64
00220834
00221633
00222432
00223231
00224030
00224829
12 800
1600
2400
3200
4000
4800
2
5
7
10
13
5
7
3
10
6
1
-
40
39
38
37
36
35
1 37/64
1 17/32
1 1/2
1 29/64
1 27/64
1 3/8
00220840
00221639
00222438
00223237
00224036
00224835
13 400
800
1200
1600
2000
1
2
3
5
6
4
7
11
3
7
34
33
32
31
30
1 11/32
1 19/64
1 1/4
1 7/32
1 3/16
00220434
00220833
00221232
00221631
00222030
16 600
1200
1800
2400
2
3
5
7
-
11
7
10
35
34
33
32
1 3/8
1 11/32
1 5/16
1 1/4
00220635
00221234
00221833
00222432
17 600
1200
1800
2400
2
3
5
7
-
11
7
10
41
40
39
38
1 5/8
1 37/64
1 17/32
1 1/2
00220641
00221240
00221839
00222438
