Exhaust Solenoid Valve Manufacturer

Exhaust Solenoid Valve

Request a Quote

About Us: http://solenoidvalvecn.com

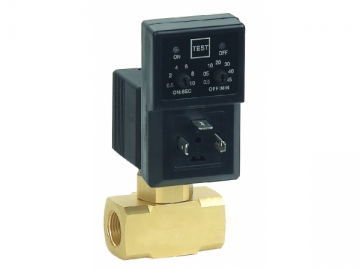

Exhaust Solenoid Valve, YSV-Z, YSE010-Z

Features
1. The exhaust solenoidvalve is a valve for use with liquidand compressed gas.
2. The temperature of the medium is equal to or less than 180℃.
3. The acting pattern: two position two way direct acting type.
4. Operating pattern: normally closed.
5. The exhaustsolenoid valve is made with brass or stainless steel.
6. It is sealed by the NBR, VITON or PTFE membrane.
7. Protection degree of the coils: IP65.

Technical Parameters of the Exhaust SolenoidValve

Model	YSV-Z	YSE010-Z
Working pressure	0~16bar	0~60bar
Diameter mm	Ф1~Ф4mm	Ф1~Ф3mm
Screw thread	G1/8 , G1/4,G3/8,G1/2
Voltage and power	AC 32VA;DC 18W
Turn on time	0.5~99seconds
Turn off time	0.5~99minutes

Note: The technicalparameters for the timer can be seen in the sample book at P52.

YUYAO NO.4 INSTRUMENT FACTORY is a China-based exhaustsolenoid valve manufacturer and supplier. We offer exhaust solenoid valve, pilot solenoid valve, water coolersolenoid valve and so on. Our highquality products are offered at competitive prices. We can complete the fullchain of manufacturing coffee pot solenoid valve, gas plastic solenoid valve,etc. right here in China. Our lower manufacturing cost saves yourpurchasing cost. More details on each ofour products are shown on the description page.
