DFD SolenoidValve

Features
1. The DFD solenoid valveis a valve foruse with thewater, liquid, gas and oil(less than 20CST).
2. The temperature of the medium is between -5 and 80℃.
3. The acting pattern: pilot type.
4. Working pressure normally closed: 0.3~12bar, normally open: 0.3~8bar .

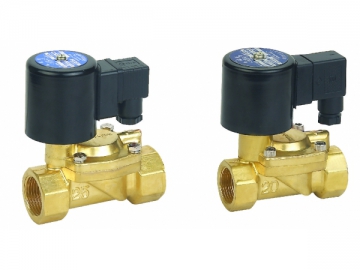

5. The DFD solenoid valve is made with forged brass, precision casting stainless steel or precision casting iron.
6. It is sealed by the NBR membrane.

7. Protection degree ofthe coils Encapsulate coil: IP65, ironclad coil: IP54.

Special Orders
1. In addition to thestandard solenoid valve, weoffer the solenoid valve with the working pressure of 16bar. You can order it if you need.
2. If you order the solenoid valve with the VITON membrane, you should mark a V on the orderform. This valve is used with mediums atmaximum temperature of 130℃.
3. If you prefer the EPDM membrane, then mark an E on the orderform. This valve is for usewith mediums at maximum temperature of 110℃.
4. We offer stainless steel flanges and cast ironflanges to joint the DFDsolenoid valve. Simply mark it out on the orderif you need them.

Technical Parameters of the DFD Solenoid Valve(Normally Closed)

Model	Joint	Diameter	CV	L	H	Medium Temperature℃	Operating Pressure	Max durability	Voltage	Materials
Model	Joint	Diameter	CV	mm	mm	Medium Temperature℃	Bar	Bar	Voltage	Materials
DFD-15	G1/2	15	3.73	80	105	-5 ~ 80℃	Normally closed:0.3~12 （0.3~16） Normally open: 0.3~8	16	220V AC/50 HZ 27VA; 110V AC/60HZ 25VA; DC24V 13 W; DC12V 13W; voltage range:±10%; DFD solenoid valve in other voltage range can be made to order.	Forged brass Stainless steel: SUS304, SUS316 Casting iron
DFD-20	G3/4	20	7	87	114

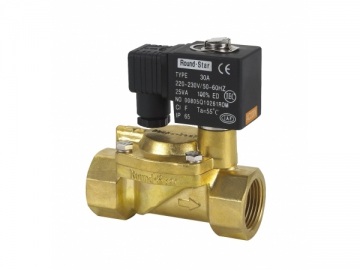

DFD-25	G1	25	11.1	107	122
DFD-32	G1¹/4	32	14	129	131
DFD-40	G1¹/2	40	24.5	145	142
DFD-50	G2	50	35	177	155

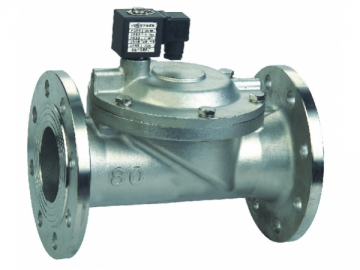

DFD-25JF	Stainless steel flange joint	25	11.1	141	165
DFD-32JF		32	14	158	185
DFD-40JF		40	24.5	173	196
DFD-50JF		50	35	204	200
DFD-65JF		65	52	256	248
DFD-80JF		80	82	277	268

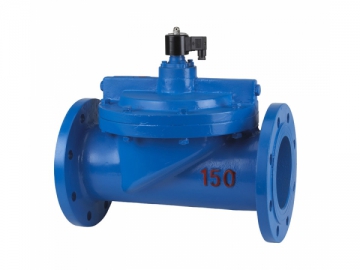

DFD-40F	Casting iron flange joint	40	24.5	169	196
DFD-50F		50	35	201	200
DFD-65F		65	52	259	280
DFD-80F		80	82	280	287
DFD-100F		100	128	352	330
DFD-125F		125	222	430	437
DFD-150F		150	292	454	460
DFD-200F		200	513	573	547

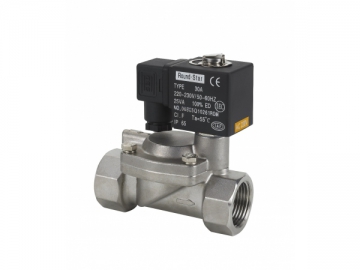

Note:The dimensions of the DFD-J stainlesssteel solenoid valve can refer to the DFD brasssolenoid valve.
