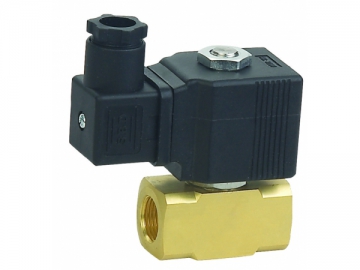

YSV Solenoid Valve

Request a Quote

About Us: http://solenoidvalvecn.com

YSV Solenoid Valve

Features
1. The YSV solenoid valveis a valve foruse with water, liquid, gas and oil (less than 20CST).
2. The temperature of the medium is between -5 and 80℃.
3. The acting pattern: direct acting.
4. The YSVsolenoid valve uses the normally closed or normally open pattern.
5. The YSV solenoid valve is made with brass.
6. It is sealed by the VITON membrane.
7.Protection degree of the coils: IP65.
8. Working voltage: AC220V, power: 22VA; DC24V, power: 14W.
9. Voltage range: ±10%.

Technical Parameters of the YSV Solenoid Valve

Model	Diameters mm	Screw Thread G	Operating Pressure Bar	CV	L (mm)	H (mm)
YSV04	4	G3/8	0~12	0.26	50	82
YSV05	5	G1/2	0~6	0.38	53	83.5
YSV02K	2	G3/8	0~3	0.12	50	91
YSV04K	4	G3/8	0~2	0.26	50	91

YUYAO NO.4 INSTRUMENT FACTORY is a major manufacturer ofsolenoid valve, based in China. We offer various types of products such assolenoid valve, low power solenoid valve, coffee pot solenoid valve and soon. Our products are high quality andcompetitively priced. We can completethe full chain of manufacturing plastic solenoid valve, steam solenoid valve,etc. right here in China. Our lower manufacturing cost can save yourpurchasing cost. A more detaileddescription of our product is shown on the page.
