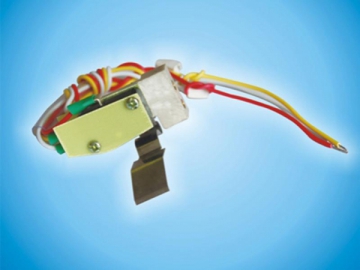

Alarm Electrical Contact
- DZ20-630 alarm contact
- DZ20-400 alarm contact
- DZ20-225 alarm contact (iron base)
- DZ20-225 alarm contact (plastic base)
- DZ20-100 alarm contact
- DAM1-250-400-630 alarm contact
- DAM1-125-160 alarm contact
- CM1-400-630 alarm contact
- CM1-225 alarm contact
- CM1-100 alarm contact
- CM1-63 alarm contact
Application
The alarm electrical contact is designed to trigger an alarm when the circuit breaker is released. The breaker is released when the load current of the circuit breaker experiences an overload, short circuit, and under voltage failure of equipment.
Alarm electrical contact specifications
Normally open-Normally closed
| Circuit breaker state | Alarm contact state | Wiring diagram |
| Close position | | |
| Open position | | |
DADA company manufactures miniature electrical switches such MCB Circuit breakers, RCD circuit breakers, ELCB breakers, RCBO, RCB circuit breakers, molded case circuit breaker, DADA started miniature circuit breaker manufacturing from 2004, already offered million various electrical circuit breakers into global markets for different electrical MCB breaker clients.
