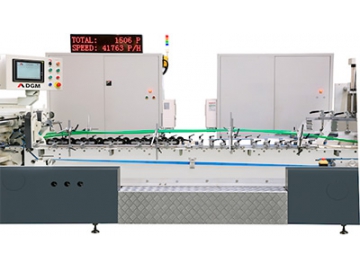

Carton Folding and Gluing Line X800 type High Speed Folding Machine
High Speed Carton Equipment Manufacturer
Description
The X800Carton folding and gluing line’s high speed folding machine uses servo motor control technology. With an extended 4.5m folding and closing section and a lengthened 3m pre-folding section, its maximum blank width reaches 800mm and the maximum processing speed is 500m/min. It is used for the production of straight-line boxes, crash-lock bottom boxes, 4 and 6 corners boxes, and other box types. For complex box models, this folder gluer offers operators an unlimited creative space and operational possibility.
The SMARTFOLD Ultra X 800 – PC is used to produce straight-line boxes, crash-lock bottom boxes, double-wall boxes and other box types.
The SMARTFOLD Ultra X 800 – SL is used to manufacture straight-line boxes, crash-lock bottom boxes, double-wall boxes, 4 and 6 corners boxes, and other box types.
Produced box type- Straight-line box A: 150 - 800 mm
B: 100 - 1100 mm
E: 70 - 390 mm - crash-lock bottom box A: 150 - 800 mm
B: 110 - 1100 mm
E: 70 - 390 mm - double-wall box A: 200 - 800 mm
B: 100 - 1100 mm
D: 30 - 150 mm
E: 80 - 680 mm - 4-corner box A: 140 - 800 mm
B: 140 - 1100 mm
H: 25 - 150 mm - 4-corner box with lid A: 250 - 800 mm
B: 140 - 1000 mm
H: 25 - 150 mm - 6-corner box A: 250 - 800 mm
B: 140 - 1000 mm
H: 25 - 150 mm
- Carton board
- Corrugated board
Processed materials
| Max. Carton board | 800 g/m² |
| Corrugated flute type | N, E & F |
| Max. speed | 500 m/min |
| Inching speed | 30 m/min |
| Max. Thickness of folded box | 20 mm |
| Max. Blank width | 800 mm |
| Total length of pressure conveyor section | 5.5 m |
| Effective pressure conveying length | 3.1 m |
| Lower belt width | 25mm |
| Outer belt width | 30mm |
| Feeding conveyor belt number | 6 pieces |
| Feeding belt width | 30mm |
| Effective pressure conveying width | 900 mm |
| Item | PC | SL |
| Length | 18.45 m | 18.45 m |
| Width | 1.6 m | 1.6 m |
| Height | 1.9 m | 1.9 m |
| Weight | 12 Ton | 12.2 Ton |
| Item | PC | SL |
| Electrical connected load | 66 kW | 66 kW |
| Compressed air | 6 bar | 6 bar |
| Air compressor capacity | 10 m³/h | 10 m³/h |
| Air tank capacity | 60 L | 60 L |

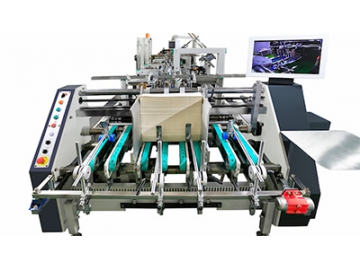

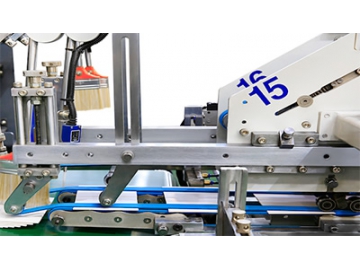

- Feeder section
- Register table

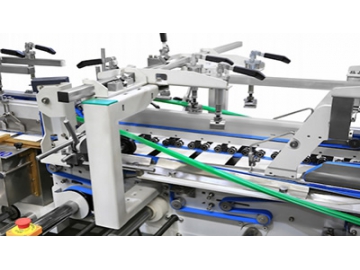

- Pre-folding section

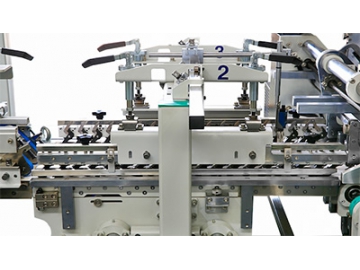

- Multi-function section

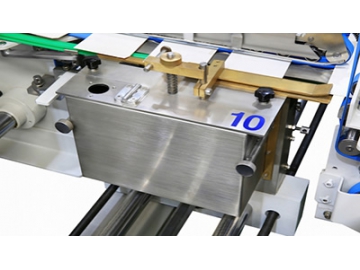

- Gluing unit

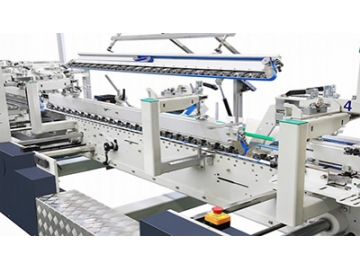

- Folding and closing section
- Trombone section
- Pressure conveyor section
- Back-folding device
