High Speed Carton Equipment Manufacturer

Description
The carton folding and gluing line’s 650 type carton folding machine features an on-line quality inspection machine, which is connected to a register table. The carton board is fully registered before entering the inspection section for color-difference detection, overprint deviation detection, die-cutting deviation detection, bar code verification, and more items to ensure the stability of the inspection system, and reduce labor costs.

The maximum speed of this folder-gluer is 400 m/min, with a maximum blank width of 650mm, making it suitable for packaging carbon boards with a maximum size of 800 g/m² and corrugated boards of E, F and N types.

Application

This carton folding and gluing line is used for the production of straight-line boxes, crash-lock bottom boxes, double-wall boxes and other box types.

Produced box type
  • Straight-line box A: 126 - 650 mm
    B: 100 - 500 mm
    E: 58 - 320 mm
  • crash-lock bottom box A: 146 - 650 mm
    B: 110 - 500 mm
    E: 68 - 320 mm
  • double-wall box A: 200 - 650 mm
    B: 100 - 500 mm
    D: 30 - 150 mm
    E: 80 - 530 mm
Processed materials
  • Carton board

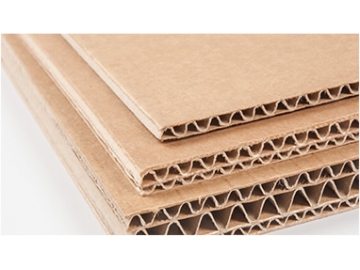

  • Corrugated board
Parameters
Processed materials
Max. Carton board 800 g/m²
Corrugated board type N, E & F
Capacity
Max. speed 400 m/min
Inching speed 20 m/min
Max. Thickness of folded box 12 mm
Max. Blank width 650 mm
Total length of pressure conveyor section 5.5 m
Effective conveying press length 3.1 m
Lower belt width 25mm
Outer belt width 30mm
Quality inspection module
Sheet weight range 250 - 650 g/m²
Inspection size (W x L) Max. 650 x 450 mm Min. 120 x 120 mm
Inspection speed Max. 250 m/min
Size and Weight
Length 17.4 m
Width 1.6 m
Height 1.9 m
Weight 8 Ton
Installation
Electrical connected load 17 kW
Compressed air 6 bar
Air compressor capacity 10 m³/h
Air tank capacity 60 L
folding and gluing system components
  • Feeder section
  • Side register table
  • Online inspection section
  • Pre-folding section
  • Crash lock bottom section
  • Lower gluing unit
  • Folding and closing section
  • Trombone section
  • Pres section
