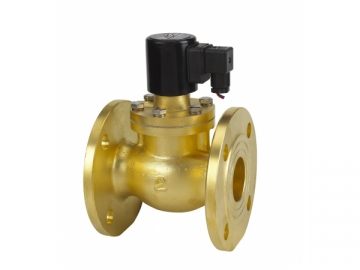

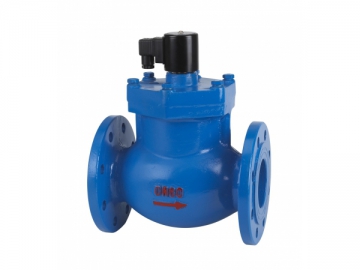

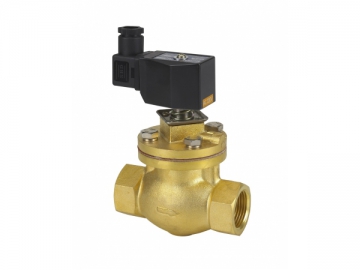

ZCLF Steam Solenoid Valve
ZCLF Steam Solenoid Valve
Features
1. The ZCLF steam solenoid valve is
2. The temperature of the medium is between -5 and
3. The acting pattern:
4. Working pressure: n
5. The ZCLF steam solenoidvalve is sealed by the PTFE
6. Protection degree of the coils:
Application
Configurations
1. The ZCLF steam solenoid valve uses the structureof second opening solenoid valve in pilot type. It uses third opening solenoid valve when the DN is more than 100. It features small volume and power andexcellent heat insulation and buffer between the main valve and pilot valve.
2. Using the heat and corrosion resistance materials and
3. Model: normally closed.
Technical Parameters of ZCLFSteam Solenoid Valve
| Model | RSC-1 | RSC-2 | RSC-2 Feed Tube | RSC-8 | RSC-10 | RSC-12 |
| Screw thread G | 1/8" | 1/4" | 1/4" | Ф12 | Ф14 | Ф13 |
| Diameter | 2.5mm | 2.5mm | 8 | 10 | 12 | |
| CV factor | 0.21 | 0.21 | 1.3 | 2.3 | 3 | |
| L | 38 | 38 | 65 | 69 | 59 | |
| H | 66 | 66 | 61 | 61 | 70 | |
| Working pressure | 0~8bar | 600mm water column pressure | ||||
| Voltage and power | 220VAC/50HZ 6.8VA; DC:24V, 5W voltage range: ±10%, | |||||
| Response time | 6~20millisecond | |||||
YUYAO NO.4 INSTRUMENT FACTORY is a China-based steamsolenoid valve manufacturer and supplier. We offer steam solenoid valve, low power solenoid valve, plasticsolenoid valve and so on. Our highquality products are offered at competitive prices. We can complete the fullchain of manufacturing coffee pot solenoid valve, liquid mini solenoid valve,etc. right here in
