PS Steam Solenoid Valve

Features
1. The PS steam solenoid valve is a valve for use with steam, liquid,gas, and oil.
2. The temperature of the medium is between -5 and 180℃.
3. The acting pattern: pilottype.
4. Working pressure: normally closed: 0.4-16bar, normally open: 0.4-10bar.

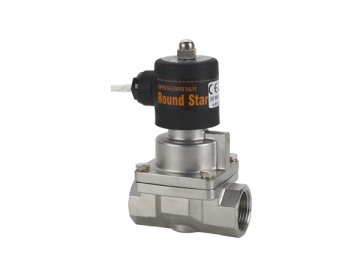

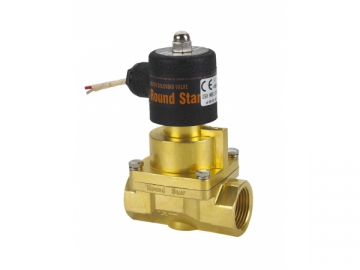

5. The PS steam solenoid valve is made with forgedbrass, precision casting stainlesssteel or cast brass.
6. It is sealed by the PTFE membrane.
7. Protection degree of the coils: encapsulatecoil: IP65, ironcladcoil: IP54.

Special Orders
We also offer the solenoid valve with special specifications.
1. For use with hot water or constanttemperature medium, the solenoid valve can use the VITON membrane toseal. You should mark a V on theorder. The temperature of the medium canreach 150℃.
2. If you need a solenoid valve with 25bar working pressure, mention it on the order.

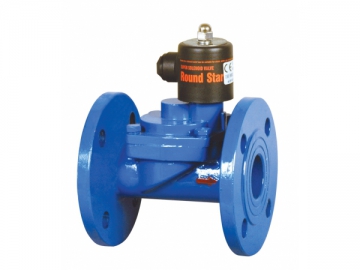

3. Heavy caliber: ф40~ф65. We offer the cast iron coupling flange tojoint the solenoidvalve, stainless steel valve deck and internals.

Technical Parameters of the PS Steam Solenoid Valve

Model	PS-15	PS-20	PS-25	PS-32	PS-40	PS-50	PS-25F	PS-32F	PS-40F	PS-50F	PS-40F	PS-50F	PS-65F	PS-15JF	PS-20JF	PS-25JF	PS-32JF	PS-40JF	PS-50JF

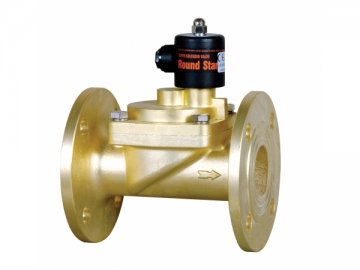

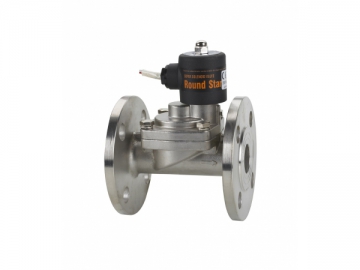

Joint	G1/2	G3/4	G1	G11/4	G11/2	G2	Copper flanged joint				Cast iron flanged joint			Stainless steel flanged joint
Diameter	15	20	25	32	40	50	25	32	40	50	40	50	65	15	20	25	32	40	50
CV	4.5	7.6	12	22	30	48	12	22	30	48	30	48	56	4.5	7.6	12	22	30	48
L mm	70	74	92	110	122	160	118	140	150	185	150	185	256	106	106	135	140	148	182
H mm	135	142	150	150	155	174	187	204	210	230	210	228	278	165	167	190	201	210	230
Temperature of medium	-5 ~180℃
Operating pressure (bar)	Normally closed: 0.4 ~ 16; normally open: 0.4 ~ 12
Max compression resistance bar	20
Voltage	220VAC/50HZ 22VA; 110 VAC/50HZ 19VA; DC24 10 W; DC12 9W; voltage range: ±10%; The solenoid valve in other voltage range can be made to order.
