RSPS Solenoid Valve

Features
1. The RSPS solenoid valve is a valve for use with steam, liquid, gas, and oil.
2. The temperature of the medium is between -5 and 180℃.
3. The acting pattern: direct step by step.
4. Working pressure: normallyclosed: 0-10bar.
5. The RSPS solenoid valve is made with forgedbrass, precision casting stainlesssteel or cast brass.
6. It issealed by the PTFE membrane.
7.Protection degree of the coils: encapsulate coil: IP65.

Special Orders
We also offer the solenoid valve with special specifications.
1. For use with hot water or constanttemperature medium, the solenoid valve can use the VITON seal. You should mark a V on the order. The temperature of the medium can reach 150℃.
2. Heavy caliber: ф40~ф65. We offer the cast iron couplingflange to joint the solenoid valve, stainless steelvalve deck and internals.
3. If youneed a solenoid valve with 16kgf/cm² working pressure, mention it on the order.

Technical Parameters of the RSPS Solenoid Valve

Model	RSPS-15	RSPS-20	RSPS-25	RSPS-32	RSPS-40	RSPS-50	RSPS-20F	RSPS-25F	RSPS-32F	RSPS-40F	RSPS-50F	RSPS-40F	RSPS-50F	RSPS-15JF	RSPS-20JF	RSPS-25JF	RSPS-32JF	RSPS-40JF	RSPS-50JF

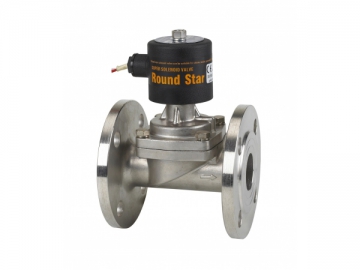

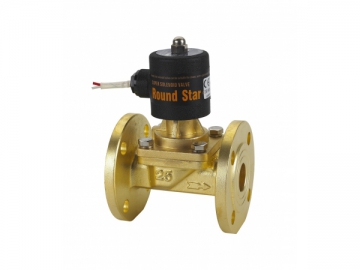

Joint	G1/2	G3/4	G1	G11/4	G11/2	G2	Copper flanged joint					Cast iron flanged joint		Stainless steel flanged joint
Diameter	15	20	25	32	40	50	20	25	32	40	50	40	50	15	20	25	32	40	50
CV factor	4.5	7.6	12	22	30	48	7.6	12	22	30	48	30	48	4.5	7.6	12	22	30	48
L mm	67	80	92	96	118	150	107	123	135	154	190	150	185	106	106	135	140	145	182
H mm	132	148	160	183	191	210	165	195	222	235	250	230	250	164	166	185	220	230	250
Temperature of medium ℃	-5 ~180℃
Operating pressure (bar)	Normally closed: 0~10;
Max compression resistance bar	20
Voltage	220VAC/50HZ 20VA; DC24V 26W; voltage range: ±10%; The solenoid valve in other voltage range can be made to order.
