TYF-01 Construction Wall Panel Production Plant (Calcium Silicate Board Compound Wall Panel, Partition Wall)
TYF-01 construction wall panel production plant is used for producing lightweight compound wall panel with calcium silicate board on its both sides. Applicable materials include cement, fly ash, EPS polyphenyl granule, sand, ceramsite, etc. It can produce 40 pieces per batch.
With the advantages of small floor space and low investment, it can help save equipment investment and factory construction costs for customers.
Patent Number:ZL201320443242.9
Output per batch | Thickness | Width | Length |
40 | 75mm | 610mm | 2440mm/3000mm |
40 | 90mm | ||
32 | 120mm | ||
26 | 150mm |
Note: The dimensions above are normal dimensions. Tianyi also provides customized production line to meet your special needs for wall panel.
-

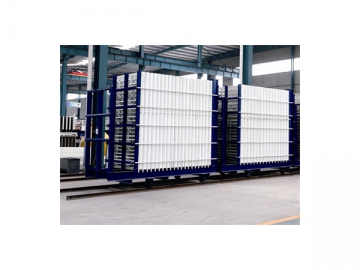

(1) TYF01 Construction Wall Panel Production Plant
Equipped with automated walking transforming system, TYF01 construction wall panel production plant has advantages of easy operation and large output. It can yield 40 pieces of wall panels per batch. -
(2) Weighing System
It can automatically weigh cement and other materials with great accuracy, and simplify the operations. -
(3) Mixing System
Large-scale fixed mixing equipment makes the slurry more uniformly mixed and improves the casting efficiency. -
(4) Mobile Slip Casting System
Outline dimension | 3590L×1470W×3450H mm |
Vibrating system power | 1.5 kW |
Structure compositino | Host machine, vibrating system, forming strip |
Hopper for cement | 1000kg |
Pneumatic butterfly valve | DN300 |
Flexible adapter sleeve | DN300 |
Pressure sensor | 1000kg |
Vibration exciter | Pneumatic |
Mixing platform | 4300*3850mm |
Landing leg | 4300*3500mm |
Steel ladder | 14# U-bar |
Mixer volume | 3m³ |
Mixer power | 30kW |
Lifting hopper volume | 1m³ |
Lifting hopper power | 4.5kW |
Pumping Pressure in Theory | High pressure | 0.5 Mpa |
Low pressure | 0.4 Mpa | |
Transport Capacity in Theory | High pressure | 5 Mpa |
Low pressure | 9.4 Mpa | |
Max. Transport Distance | Horizontal | 300 mm |
Vertical | 120 mm | |
Main Motor Power | 7.5 kW | |
Hopper Volume | 3m³ | |
Loading Height | 1000 mm | |
Hydraulic Oil Tank Volume | 60L | |
Distribution Valve Form | Ball valve | |
Main Machine Weight | 500kg | |
Frame Size: L×W×H | 1785×960×1700mm |
