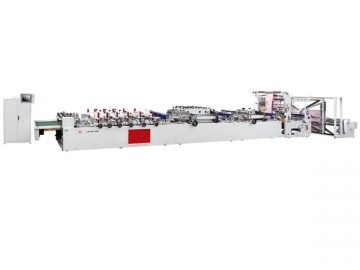

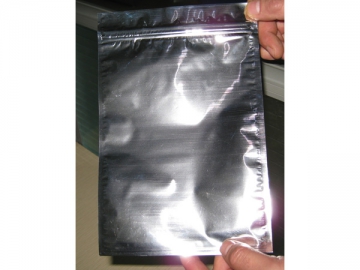

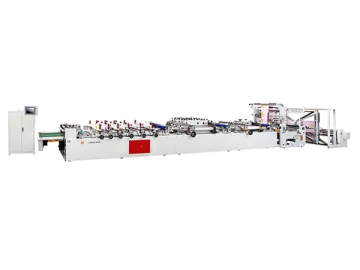

This range of laminated bag making machine is characterized by heavy duty and multiple functions. It comes with a new design for manufacturing laminated bags out of various laminated materials. The product normally produces 3 side sealing bag, stand-up bag as well as zipper bag.

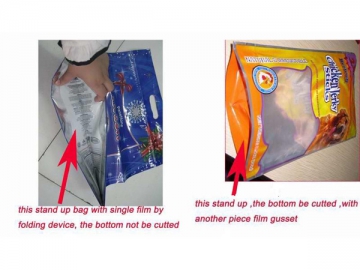

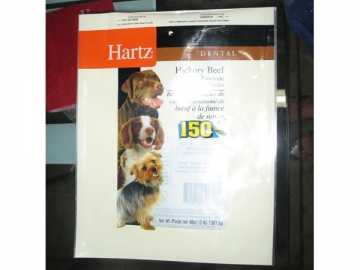

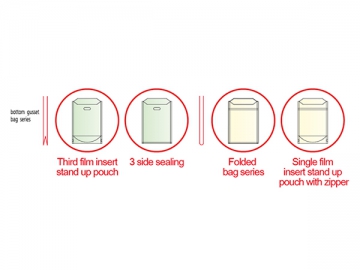

Unlike the CWZD-B model, this range of bag making equipment can make two kinds of stand-up bags. One is made by cutting the bottom and an extra sheet of unprinted film is heat sealed on the bottom. The other comes into being by folding a single sheet film into the bottom without cutting the bottom. The CWZD-B model can only produce the former type of stand-up bag. These bags are mainly applied as food package, like pet food bag. They are well accepted in America.
Features 1. The laminated bag making machine boasts full automation in terms of film folding, punching, bottom gusseting as well as sealing on the bottom to make a complete bag. 2. It uses a newly designed single sheet film bottom gusseting device. 3. The product also has two Japanese Yaskawa manufactured servo motors as well as driver. The driving system is under the control of PLC made by Japanese Panasonic. 4. It uses the touch screen from Taiwan for presentation of technical parameters. 5. The laminated bag making machine uses a heavy duty bridge type heat sealing construction with high sealing intensity. 6. Its unwinding device comes with EPC and dual photocell tracking systems. In addition, the unwinding operation is controlled by the automatic tension control mechanism. 7. The product possesses a 6 skip feeding device. 8. It comes with an automatic waste film rewinding equipment. 9. Our laminated bag making device is designed with optional automatic pneumatic material loading device as well as handle punching unit.

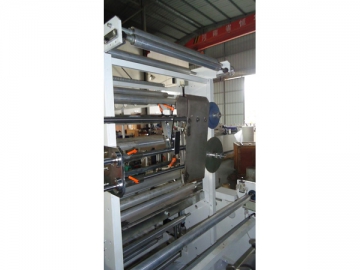

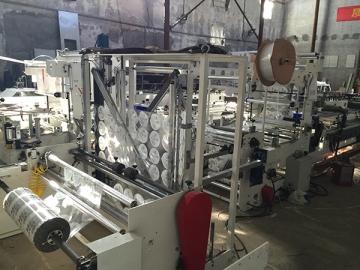

Unwinder

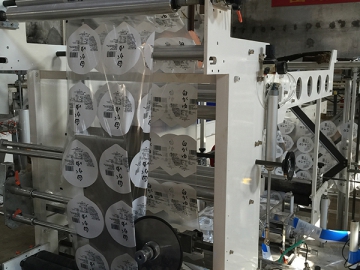

Triangle folding

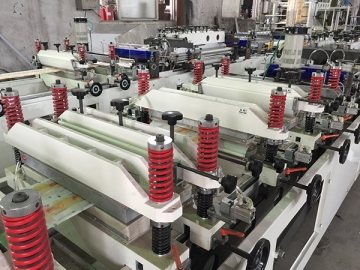

Bottom gusset section
Sealing for zipper and bag bottom

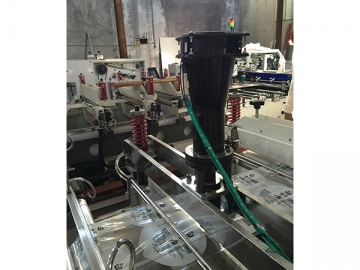

Ultrasonic sealing to press zipper

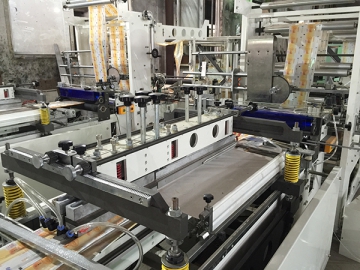

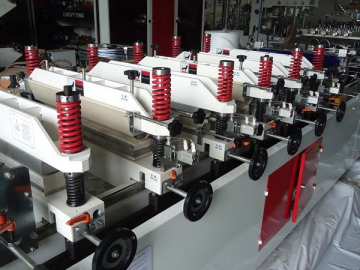

Horizontal sealer section

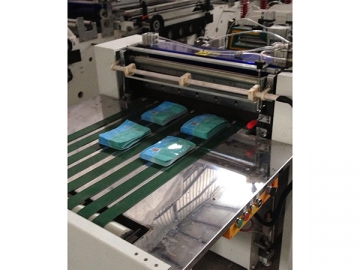

Automatic conveyor table

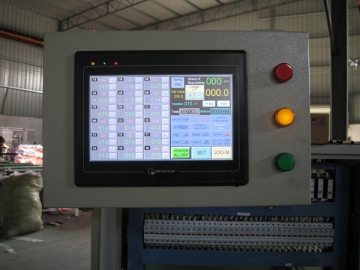

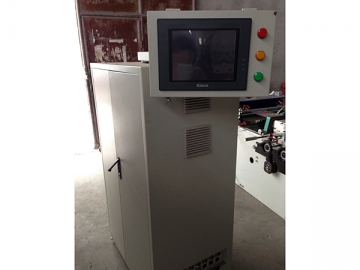

Control panel and cabinet
Technical Parameters
Model
CWZD-400B FD
CWZD-500B FD
CWZD-600B FD
Unwinding Width
800mm
1000mm
1200mm
Pouch Making Length
70-380mm ×6 ( N≤6 )
70-380mm ×6 ( N≤6 )
70-380mm ×6 ( N≤6 )
Pouch Making Width
70-380mm
70-480mm
70-580mm
Pouch Making Speed
40-150pcs/min
40-150pcs/min
40-150pcs/min
Film Feeding Speed
35m /min
35m /min
30m /min
Total Power
38kW
43kW
48kW
Weight
3900kg
4100kg
4400kg
Overall Dimension (L×W×H)
12300×1750×1800mm
12300×1950×1900mm
12300×2050×2000mm
Note: Attributed to the continuous perfection of existing bag making equipment as well as development of new functions, the appearance, performance characteristics as well as technical parameters may undergo some changes without notice.
