LY -60HLM Half Cut Double Glass Mono Solar Panel
Request a Quote
Features
- 120 half-cells monocrystalline module
- Front tempered glass
- Back glass
- Size: 1755*1038*35mm
- Max. Module efficiency: 20.2%
- Aluminum alloy frame
Description

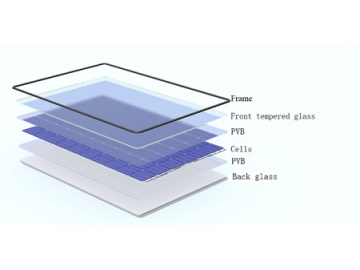

This 120 half-cell double glass monocrystalline photovoltaic module is efficient and cost-effective thanks to its double sided PERC cells. It can generate electricity from both sides, improving its generating efficiency by about 30%. The PVB film on both sides plus additional clear tempered glass protects it from water while increasing solar transmittance, providing better heat dissipation and longer life.
Technical Parameters
| Mechanical Parameters | |
| Length | 1755mm |
| Width | 1038mm |
| Weight | 18.7kg |
| Thickness | 35mm |
| Area | 1.822m2 |
| Individual Leadwire | 4mm2 |
| Connectors | MC4/MC4 equivalent |
| Junction Box | IP68 |
| Cell type | Monocrystalline cell |
| Frame material | Aluminum alloy |
| Front glass | Extra clear tempered glass，3.2mm |
| Encapsulation | PVB |
| Load rating | Static:5400Pa Wind:2400Pa |
Module numbers and ratings at standard test conditions(1000W/m2, AM 1.5, 25°C)
| Nominal values | 370 | 375 | |
| Nominal power (-0/ 5W) | PMPP (W) | 370 | 375 |
| Voltage at Pmax | VMPP (V) | 36.25 | 36.48 |
| Current at Pmax | IMPP (A) | 10.21 | 10.28 |
| Open circuit voltage | VOC (V) | 42.96 | 43.01 |
| Short circuit current | ISC (A) | 10.92 | 10.96 |
| Module efficiency | % | 20.3 | 20.6 |
| Operation temperature | ℃ | -40~ 85 | -40~ 85 |
| Maximum system voltage | VSYS (V) | 1500 | 1500 |
| Maximum series fuse | ICF (A) | 20A | 20A |
