LYS -60HLM Half Cut Mono Solar Panel
Request a Quote
Features
- 120 half-cells monocrystalline module
- Front tempered glass
- TPT back sheet
- Size: 1755*1038*35mm
- Max. Module efficiency: 20.6%
- Aluminum alloy frame
Description

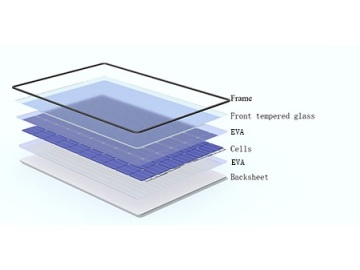

This 120 half-cell single glass monocrystalline photovoltaic module delivers excellent durability and reliability. The front panel uses extra clear tempered glass, which features outstandingly high solar transmittance for improved solar energy conversion, consistent performance and durability, and the rear uses a TPT back sheet.
Technical Parameters
| Mechanical Parameters | |
| Length | 1755mm |
| Width | 1038mm |
| Weight | 18.7kg |
| Thickness | 35mm |
| Area | 1.822m2 |
| Individual leadwire | 4mm2 |
| Connectors | MC4/MC4 equivalent |
| Junction Box | IP68 |
| Cell type | Monocrystalline cell |
| Frame material | Aluminum alloy |
| Front glass | Extra clear tempered glass，3.2mm |
| Encapsulation | EVA |
| Load rating | Static: 5400Pa Wind: 2400Pa |
Module numbers and ratings at standard test conditions(1000W/m2, AM 1.5, 25°C)
| Nominal values | 370 | 375 | |
| Nominal power (-0/ 5W) | PMPP (W) | 370 | 375 |
| Voltage at Pmax | VMPP (V) | 36.25 | 36.48 |
| Current at Pmax | IMPP (A) | 10.21 | 10.28 |
| Open circuit voltage | VOC (V) | 42.96 | 43.01 |
| Short circuit current | ISC (A) | 10.92 | 10.96 |
| Module efficiency | % | 20.3 | 20.6 |
| Operation temperature | ℃ | -40~ 85 | -40~ 85 |
| Maximum system voltage | VSYS (V) | 1500 | 1500 |
| Maximum series fuse | ICF (A) | 20A | 20A |
