3D Laser Engraver, 3D engraving system
Model: GW-B05
Features
  • A variety of materials can be processed. The laser engraving machine can engrave crystal, glass, acrylic, zircon and other transparent materials and mark metal, wood, plastic and other non-transparent materials.
  • Simple operation and easy maintenance
  • A customized machine design is available according to your specific production needs.
Technical Parameters
Model GW-B05
Laser pump Diode pump laser
Laser power 2W or 3W
Wavelength 532
Max. energy on one pulse 1.2mj
Beam quality M2< 1.5
Laser frequency Standard:3000HZ Optional: 4000HZ, 6000HZ
Q-switch Acousto-optic Q-switch (AOQS)
Pulse width 7ns
Max. engraving area ¢120mm
Max. engraving speed Standard: 3000 points/s Optional: 4000 points/s, 5800 points/s
Head of 3D laser machine Single head
Power supply 220V±10%/50Hz
Cooling Air cooling
Laser resolution 500-1200DPI
Focal distance Standard:100mm Optional: 120mm, 165mm
Laser beam spot diameter 0.02mm
Laser lifetime 20000 h
Applicable materials Engraving: transparent materials like acrylic, crystal, glass, zircon, PC/PET sheet, etc. Marking: non-transparent materials like plastic, wood, metal, ceramics, leather and more
Working environment Clean, dust-free and no vibration. It is recommended to work in an air-conditioned environment.
Operating temperature 10-30°C
Dimensions 740*600*1280MM
Motion Z-axis linkage
Machine weight 80KG
Average power 300W
Warranty One-year warranty, lifetime support service and optical components are not covered by the warranty.
Automatic file protection of power outage Yes
Multi crystals engraving with one file Yes

Note: Standard 3D engraving laser machine model parameters are shown above. We also offer customized 3D laser engraving and marking solutions according to specific customer requirements.

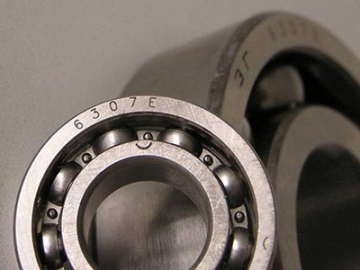

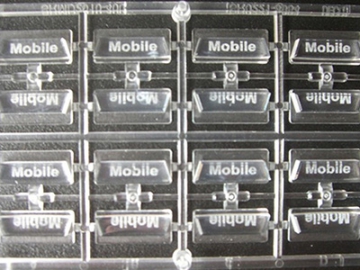

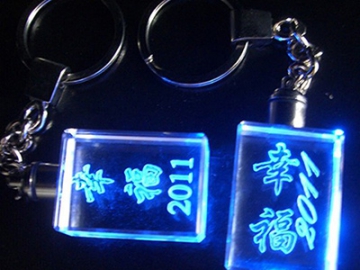

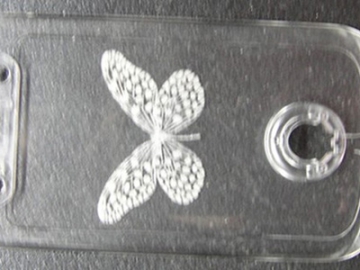

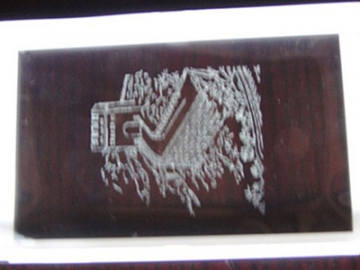

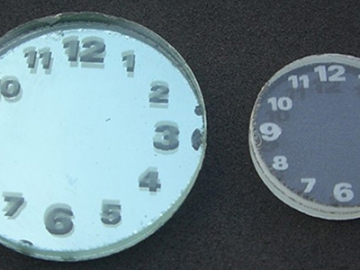

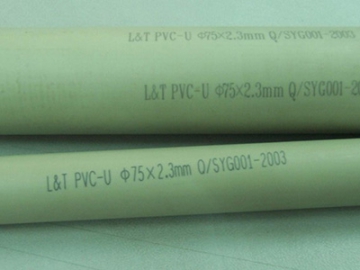

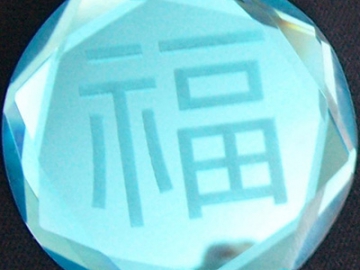

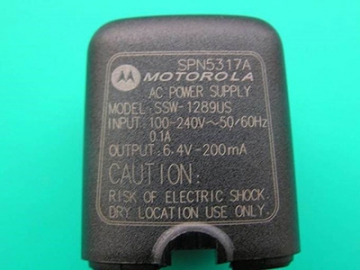

Sample photos gallery
