HD-LS40 Aircraft Lavatory Service Truck
Request a Quote
The HD-LS40 aircraft lavatory service truck is airport ground equipment designed to provide services for the discharge and cleaning of aircraft toilet sewage systems.
This service truck is widely used with Airbus A300, A310, A320, A330, A340, Boeing B727, B737, B747, B767, B777 and COMAC C919.
The lavatory truck is composed of the class II chassis (chassis for the cab), water tank assembly, sewage system, water supply system, tail frame assembly, lifting platform, hydraulic transmission system, and electrical system.
Technical Specifications of Lavatory truck| Parameter | Configuration1 LS40A(JMC/GB4/3m³)/MT | Configuration2 LS40B (JMC/GB4/3m³)/MT | Configuration3 LS40C (600p/GB5/4m³)/MT) | Configuration4 LS40D (700p/GB 4/4m³/MT) | Configuration5 LS40E (700p/GB5/4m³/AT) | ||||||
| Engine | Manufacturer | JiangLing Engine Co , Ltd | JiangLing Engine Co , Ltd | ISUZU (ChongQing) Engine Co., LTD | ISUZU (ChongQing) Engine Co., LTD | ISUZU (ChongQing) Engine Co., LTD | |||||
| Model | JX493ZLQ4 | JX493ZLQ5 | 4KH1CN5HS | 4HKI-TCG40 | 4KH1-TC51 | ||||||
| Power(KW) | 80 | 85 | 96 | 141 | 140 | ||||||
| Water Tank Volume(L) | 2700 | 3000 | 4000 | 4000 | 4000 | ||||||
| Clear Water Tank Volume(L) | 1000 | 1000 | 1300 | 1300 | 1300 | ||||||
| Sewage Tank Volume(L) | 2000 | 2000 | 2700 | 2700 | 2700 | ||||||
| Recycled Water Tank Volume(L) | 200 | 200 | 240 | 240 | 240 | ||||||
| Water Flow(L/min) | 136 | 136 | 180 | 180 | 180 | ||||||
| Water Pressure (M pa) | 0.44 | 0.44 | 0.3~0.5 | 0.3~0.5 | 0.3~0.5 | ||||||
| Curb Weight(kg) | 3600 | 3500 | 3450 | 4550 | 4600 | ||||||
| Boundary Dimension (Length x Width x Height)(mm) | 6800X2150X1900 | 6800X2150X1900 | 6900x2100x2160 | 7310x2200x2360 | 7320x2170x2410 | ||||||
| Maximum Speed(km/h) | 40 | 40 | 80 | 80 | 80 | ||||||
| Under-pan | Manufacturer | JMC Motor Co., LTD | JMC Motor Co., LTD | ISUZU Motor Co., LTD | ISUZU Motor Co., LTD | ISUZU Motor Co., LTD | |||||
| Model | JX1040TG24 | JX1062TPG25 | QL1070A5KAY | QL11009KARY | QL1100A8PAY | ||||||
| Under-pan Wheel Base | 3360 | 3360 | 3815 | 3815 | 3815 | ||||||
| Platform Lifting Height (mm) | 400-3000 | 400-3000 | 400-3000 | 520-3000 | 520-3000 | ||||||
| Ground Clearance | 200 | 200 | 180 | 180 | 180 | ||||||
| Water Tank Material/Thickness (mm) | S31603/3mm | S31603/3mm | S31603/3mm | S31603/3mm | S31603/3mm | ||||||
| Channel Circular Diameter (mm) | 12800 | 12800 | 15500 | 17000 | 17000 | ||||||
| Engine Emission | GB 4 | GB 5 | GB 5 | GB 4 | GB 5 | ||||||
| Gearbox Model/ Gear Model | JC528T8(5 Forward Gear 1Reverse Gear ) | JC528(5 Forward Gear 1Reverse Gear ) | MSB-5SM(5 Forward Gear 1Reverse Gear ) | MLD-6Q(5 Forward Gear 1Reverse Gear | ALLISON1000 / (AT/2 Forward Gear 1Reverse Gear ) | ||||||
- Lifting platform
The lifting work platform is made of newly developed aluminum alloy profiles, with single-stage hydraulic cylinder for its lifting. This lifting platform facilities implementation of lavatory service with a lifting range from 400mm to 2800mm, which is applicable to various active airplanes listed above. - Water Tank
1)The water tank is made of 3mm thick 304 stainless steel plate. The water tank is composed of a flushing tank (middle), a sewage tank (back), a vacuum pump circulating tank (front) and a tank buffer. Although the three tanks are integrated, but they are completely isolated.
2)The water tank can be turned into an insulation water tank upon customer request.
3)The water tank and the truck frame are connected and attached using a rubber pad, which reduces truck vibration during movement. - Hydraulic Motor / Drive System
1)The vacuum pump sewage system driven by hydraulic motor offers cleaning services in a convenient, efficient manner for aircraft sewage tanks.

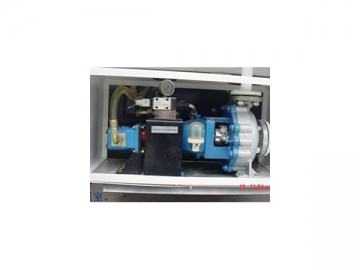

2)The stainless steel pump is driven by the hydraulic motor, and supplies cleaner for the aircraft sewage truck and lavatory service truck. - All operating switches, plugs, and circuit boards are all water-resistant .
- ISUZU 600P sewage truck.(GB4)
- Flow display and control system
- Rear platform lifter
- JMC chassis sewage truck.(GB4/GB5)
- The 700P GB 5 automatic cab has large space and comfortable operation. It can also be equipped with tachographs, move backward image, radar and so on
- The vacuum pump suction the air from the sewage tank to produce negative pressure on it so as to achieve the effect of vacuum suction
