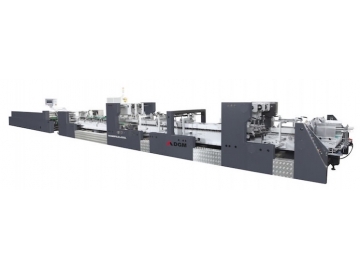

The carton and box folding gluing line’s 800 type carton machine is a multipurpose packaging equipment, with a maximum blank width of 800mm. It is used for gluing small sized boxes and large sized carton.

This folding carton gluing system is equipped with an upper delivery guide plate, providing prerequisites for precise pre-folding, folding and gluing of thicker cardboard and corrugated carton. This equipment features a component interchangeability, which, when paired with an easy installation and disassembly of all debugging accessories, features a short set up time and fast changeover.

Application

The TECHNOFOLD 800 – AC without pre-folding section is used for straight-line boxes, crash-lock bottom boxes, double-wall boxes, and other box types.

The TECHNOFOLD 800 – PC is used to produce straight-line boxes, crash-lock bottom boxes, double-wall boxes and other box types.

The TECHNOFOLD 800 – SL is used to manufacture straight-line boxes, crash-lock bottom boxes, double-wall boxes, 4 and 6 corners boxes and other boxes.

The TECHNOFOLD-800 is ideal for small and medium sized post-print packaging enterprises to produce various materials and box shapes in small and medium sizes.

Produced box type
  • Straight-line box A: 160 - 800 mm
    B: 100 - 800 mm
    E: 70 - 390 mm
  • crash-lock bottom box A: 170 - 800 mm
    B: 170 - 800 mm
    E: 80 - 390 mm
  • double-wall box A: 200 - 800 mm
    B: 100 - 800 mm
    D: 30 - 150 mm
    E: 80 - 620 mm
  • 4 corners box A: 150 - 800 mm
    B: 160 - 800 mm
    H: 25 - 150 mm
  • 4 corners box with lid A: 270 - 700 mm
    B: 160 - 450 mm
    H: 25 - 150 mm
  • 6 corners box A: 270 - 700 mm
    B: 160 - 450 mm
    H: 25 - 150 mm
Processed materials
  • Carton board
  • Corrugated board
Parameters
Processed materials
Max. Carton board 800 g/m²
Corrugated board type N, E, F& B
Capacity
Max. speed 300 m/min
Inching speed 30 m/min
Max. Thickness of folded box 12 mm
Max. Blank width 800 mm
Lower belt width 25mm
Outer belt width 30mm
Total press conveyor length 5.5 m
Effective press conveying length 3.1 m
Size and Weight
Item AC PC SL
Length 13.65 m 15.95 m 15.95 m
Width 1.58 m 1.58 m 1.58 m
Height 1.4 m 1.4 m 1.4 m
Weight 7 Ton 7.5 Ton 7.8 Ton
 Installation
Item AC PC SL
Electrical connected load 16 kW 20 kW 216 kW
Compressed air 6 bar 6 bar 6 bar
Air compressor capacity 10 m³/h 10 m³/h 10 m³/h
Air tank capacity 60 L 60 L 60 L
folding and gluing system components
  • Feeder section
  • Side register table
  • Pre-folding section
  • Lock bottom section
  • Lower gluing unit
  • Upper gluing unit
  • Folding and closing section
  • Trombone section
  • Press section
  • Back-folding device
