Natural Gas Generator Sets with Liyu Engines Manufacturer

Natural Gas Generator Sets with Liyu Engines

Request a Quote

About Us: http://power-gensets.com/3-2-3-liyu-gas-engine-series.html

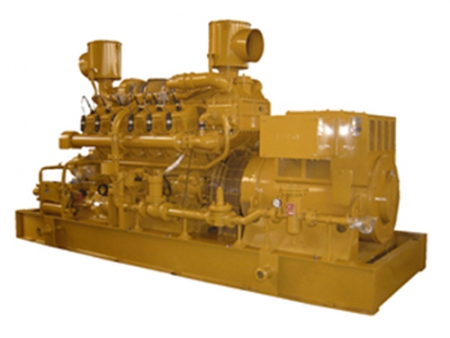

RN - L Series Natural Gas Generator Sets, Liyu Engine 230/400V 50HZ

This natural gas generator set incorporates world's leading control, testing and protection systems, as well as a finite element analysis software tool, to ensure that the generator set runs reliably and efficiently even if there is a change in fuel gas quality;
Over 41% of power generation efficiency, and over 86% of gas comprehensive utilization;
Low emissions, Nox≤500mg/ Nm³ (2g/kWh);
High reliability, major overhauls are required every 48000 running hours, ensuring maintenance-free operation for up to 8000 hours per year;

50Hz Natural Gas Generator Set

N0.	Genset Model	Rated Power		Engine Model	Cylinder	Bore*Stroke (mm)	Displacement (L)	Dimensions
N0.	Genset Model	kW	kVA	Engine Model	Cylinder	Bore*Stroke (mm)	Displacement (L)	LWH (mm)
1	LY1200	1100	1375	Liyu Engine	12/V	170*195	53.1	470017002300
2	LY1600	1460	1825	Liyu Engine	16/V	170*195	70.8	594017002615
3	LY2000	1800	2250	Liyu Engine	20/V	170*195	89	732017002615

50Hz Biogas Generator Set

N0.	Genset Model	Rated Power		Cylinder	Bore*Stroke (mm)	Displacement (L)	Rated Current (A)	Battery	Breaker Model	Dimensions	Weight
N0.	Genset Model	kW	kVA	Cylinder	Bore*Stroke (mm)	Displacement (L)	Rated Current (A)	Battery	Breaker Model	LWH (mm)	(kg)
1	LY1100GH/L-Z	1100	1375	12/V	170*195	53.1	1985	240Ah/24V	E2B2000 D LI 3P FHR NST	470017002300	10300
2	LY1500GH/L-Z	1460	1825	16/V	170*195	70.8	2634	360Ah/24V	E4N3200 D LI 3P FHR NST	594017002615	12500

Notes:
1. 50Hz/1500rpm generator set, voltage 400V/230V;
2. Liyu gas engine with standard ignition system and intake valve;
3. Gas supply pressure below 50Kpa;
4. Vertical water tank;
5. If you have special requirements on the project, please consult with our technicians;
