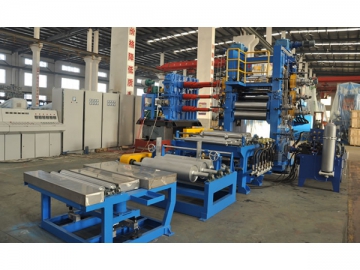

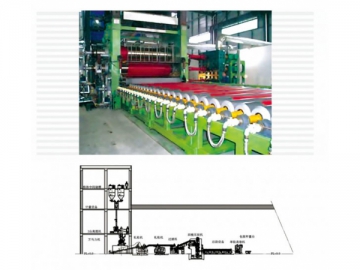

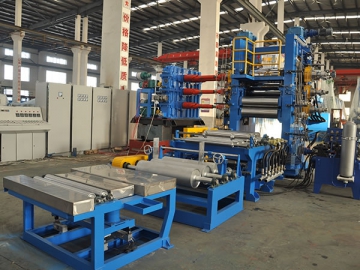

PVC Film Calendering Line Manufacturer

PVC Film Calendering Line

Request a Quote

About Us: http://huahanmachine.com

Specifications

Model	Φ12"x36"L5	Φ16"x48"L5	Φ16"x48"Ґ4	Φ18"x54"L5	Φ18"x54"Ґ4	Φ20"x63"Ґ4
Item	Φ305x900 L5	Φ410x1220 L5	Φ410x1220Ґ4	Φ450x1300 L5	Φ450"x1300Ґ4	Φ510x1600Ґ4
Roller Size	Φ305x900	Φ410x1200	Φ410x1200	Φ450x1300	Φ450"x1300	Φ510x1600
Roller Arrangement	L pattern	L pattern	Ґ pattern	L pattern	Ґ pattern	Ґ pattern
Production Rate (m/min)	6~40	6~40	6~40	6~40	6~40	6~40
Film Thickness (mm)	0.07~0.7	0.07~0.7	0.05~0.7	0.07~0.7	0.05~0.7	0.05~0.7
Film Width (mm)	700	1,000	1,000	1,000	1,000	1,300
Motor Power (kw)/Number of Motor	15/5	22/5	22/2 15/2	30/5	30/2 22/2	22/2 15/2
Model	Φ22"x66"Ґ4	Φ22"x66"L5	Φ24"x80"Ґ4	Φ24"x72"L5	Φ24"x72" Ґ 5	Φ26"x90"Ґ4
Item	Φ560x1675Ґ4	Φ560x1675 L5	Φ610x2030Ґ4	Φ610x1830 L5	Φ610"x1830 Ґ 5	Φ660x2300Ґ4
Roller Size	Φ560x1680	Φ560x1680	Φ610x2030	Φ610x1830	Φ610"x1830	Φ660x2300
Roller Arrangement	Ґ pattern	L pattern	Ґ pattern	L pattern	Ґ pattern	Ґ pattern
Production Rate (m/min)	6~60	6~60	6~60	6~60	6~60	6~60
Film Thickness (mm)	0.05~0.7	0.07~0.7	0.07~0.7	0.05~0.8	0.07~0.7	0.05~0.7
Film Width (mm)	1,350	1,350	1,830	1,500	1,500	1,850
Motor Power (kw)/Number of Motor	55/2 37/2	75/3 55/2	75/2 55/2	75/2 90/3	75/2 90/3	75/2 90/2
Model	Φ26"x80" Ґ 5	Φ26"x80"L5	Φ28"x100"Ґ4	Φ28"x100" Ґ 5	Φ28"x100" L5	Φ30"x102"Ґ4
Item	Φ660x2030 Ґ 5	Φ660x2030 L5	Φ710x2550Ґ4	Φ710x2550 Ґ 5	Φ710"x2550L 5	Φ760x2600Ґ4
Roller Size	Φ660x2030	Φ660x2030	Φ710x2550	Φ710x2550	Φ710"x2550	Φ760x2600
Roller Arrangement	Ґ pattern	L pattern	Ґ pattern	Ґ pattern	L pattern	Ґ pattern
Production Rate ( m/min)	6~60	6~60	6~60	6~60	6~60	6~60
Film Thickness (mm)	0.05~0.7	0.07~0.7	0.05~0.7	0.07~0.8	0.07~0.7	0.05~0.7
Film Width (mm)	1,600	1,600	2,050	2,050	2,050	2,200
Motor Power (kw)/Number of Motor	75/2 110/3	75/3 110/3	90/2 110/2	90/2 110/3	90/2 110/3	132/2 90/2
Model	Φ30"x102" Ґ 5	Φ32"x110Ґ4	Φ34"x160"Ґ4	Φ23" ×Φ26"x73" Ґ 7
Item	Φ760x2600 Ґ 5	Φ810x2800Ґ4	Φ860x4050Ґ4	Φ585" ×Φ660"x1850" Ґ 7
Roller Size	Φ760x2600	Φ810x2800	Φ860x4050	Φ585" ×Φ660"x1850"
Roller Arrangement	Ґ pattern	Ґ pattern	Ґ pattern	Ґ pattern
Production Rate ( m/min)	6~60	6~60	6~60	6~60
Film Thickness (mm)	0.07~0.7	0.05~0.7	0.05~0.7	0.07~0.8
Film Width (mm)	2,200	2,250	3,250	1,550
Motor Power (kw)/Number of Motor	132/3 90/2	132/2 110/2	132/2 185/2	90/2 75/5
