YCZX25 Case Packer, Case Packing Machine

YCZX25 Case Packer, Case Packing Machine
YCZX25 Case Packer, Case Packing Machine
YCZX25 Case Packer, Case Packing Machine
YCZX25 Case Packer, Case Packing Machine
YCZX25 Case Packer, Case Packing Machine
Request a Quote

Application
The production capacity of the YCZX25 case packer, case packing machine is 20-25 cartons/min. It is used in PET bottles, PP bottles, glass bottles and Tetra Paks. It is easy to change the bottle type, and suitable for a variety of combination packaging methods.

Specification
Model YCZX25
Machine Dimension L6350mm*W2660mm*H2130mm
Molding Carton Dimension Max=450mm(L)*340mm(W)*315mm(H)(or special specification )
Min=285mm(L)*165mm(W)*90mm(H)
Capacity 20-25cases/min
Power Supply Capacity Voltage:380V Power consumption:8 kw
Working Air Pressure 0.6~0.8Mpa
Air Consumption 1000 NL/min
Features
  • Bottles are fed using a plastic mesh belt conveyor, which arranges the bottles neatly, with options of six rows, five rows, or four rows bottle-feeding according to your needs.

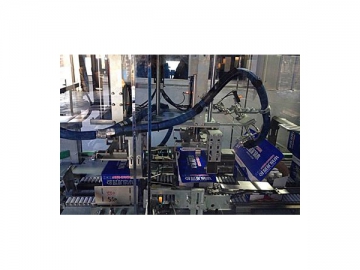

  • Using a robot arm ensures the paper and product reach the positioning point, and the product will lightly fall on the paper. The machine structure is reasonable, and machine is lighter and more stable.
  • This case packer, case packing machine uses a famous hot melt adhesive equipment, and features easy operation and durability. Packaged products have a neat, beautiful appearance that are convenient for storage and transportation.
