Advertising CNC Engraving Machine
Welcome to this page constructed by LIGHT Company, a specialized manufacturer of advertising CNC engraving machine, based in China.
Our advertising CNC engraving equipment is widely used in the following fields.
1. A CNC engraver is commonly used in advertising industry for engraving and cutting road sign, marble, copper, matrix, signs, trademark and metal materials.
2. Used in arts and crafts industry to create patterns on marble and stone souvenirs, and trademarks, etc.
3. It can also be used in mould making and stamp industries.
To make customers better understand our CNC engraving machine, we give some detailed information in the following text.

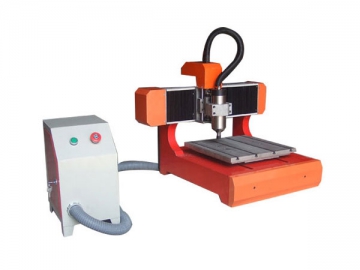

1. Advertising CNC Engraving Machine, LT-3030Specifications
Machine Model | LT-3030 |
X.Y working area | 300*300mm |
Z working area | 100mm |
Table | 380*380mm |
movement positioning accuracy | 0.02/300mm |
repeat positioning accuracy | 0.01mm |
X, Y verticality | 0.025/300mm |
Z space to a high degree | 120mm |
motor power | 0.8/1.5KW |
Spindle speed | 6000-24000rpm |
Carving the highest rate | 3000mm/min |
Driving System | Stepper |
2. Advertising CNC Engraving Machine, LT-6090
Features
1. High accuracy ball screw ensures steady working and high accuracy.
2. The application of the breakpoint memory ensures continuous work.
3. Gantry movement ensures longer service life and precise positioning.
4. The CNC engraving machine is suitable for building moulds, logo industry, schools, enterprises and institutions use.
Machine Model | LT-6090 |
X.Y working area | 600*900mm |
Z working area | >100mm |
Table | 720*1150mm |
Max. Speed | 4m-5.5m/min |
Max. working speed | 2m-3m/min |
Max. feeding height | 100mm |
Working delicacy | 0.005mm |
Repositioning accuracy | 0.05mm |
Command | G code*.u00*.mmg*.plt |
Surroundings for software | windows98/2000/xp |
Power (spindle not included) | 300w |
Working voltage | AC220V/50Hz |
Spindle power | 1.5kw |
Spindle rotating speed | 0-24000rpm/min |
Drive motor | Stepper |

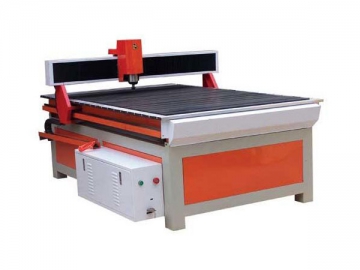

3. Advertising CNC Engraving Machine, LT-1212/1218/1224
Features
1. Linear tracks, long service life.
2. X-axis adopts the dustproof structure. It ensures the long-time operation.
3. This engraving machine is compatible with CAD/CAM, such as Tpye3/ aetcarm /castmate/ proe /corelerow / wentai, etc.
Model parameter | LT-1212 | LT-1218 | LT-1224 |
table size | 1200*1200mm | 1200*1200mm | 1200*2400mm |
Z area | >100mm | >100mm | >100mm |
Max speed | 4m-5m/min | 5m-6m/min | 5m-7m/min |
Engraving speed | 2m-3m/min | 3m-3.5m/min | 3m-3.5m/min |
Delicacy | 0.005mm | 0.005mm | 0.005mm |
Reposition | 0.05mm | 0.05mm | 0.05mm |
Command | G code*u00* mmg* plt | G code*u00* mmg* plt | G code*u00* mmg* plt |
Surroundings | Windows98/2000/xp | Windows98/2000/xp | Windows98/2000/xp |
Power supply | AC220V/50Hz | AC220V/50Hz | AC220V/50Hz |
Spindle power | 1.5kw | 1.5kw | 1.5kw |
Spindle speed | 0-24000rpm/min | 0-24000rpm/min | 0-24000rpm/min |
Working mode | Stepper | Stepper | Stepper |
Weight | 400kg | 650kg | 900kg |
