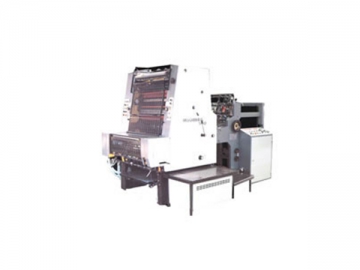

Applications of One-color Offset Printing Machine PZ-1740
Offset Printing Machine PZ-1740 can be used to print in middle and small size of multi-colored printing. For example the cover and inset printing of the top grade books, periodicals, album, the inside and outside packing of high grade smoke, wine, food and medicine and advertisements etc.

Features of One-color Offset Printing Machine PZ-1740
1. The printing machine is equipped with high pile non-stop feeder and delivery;
2. Photoelectric detector is available for double sheet, askew sheet and blank sheet control.
3. Steady feeding and precise printing can be ensured for the rotary feeding roller when the machine works at a high speed.
4. No space roller installation can be ensured.
5. The printing machine is equipped with computer-calculated inking units.

Main Technical Parameters of One-color Offset Printing Machine PZ-1740
Max. sheet size (mm) 540×740
Max. printing size (mm) 520×725
Gripper margin (mm) 8-10
Weight of paper (g/m2) 35-380
Max. Printing speed(s/h) 10000
Plate size (mm) 615×740
Blanket size (mm) 625×770
Thickness of blanket (mm) 1.9
Feeder pile height(mm) 900
Delivery pile height (mm) 420
Overall Dimensions (mm) 2680×2300×1920
Power of main motor (kw) 4
Overall power(kw) 9
Machine weight(kg) 4800
