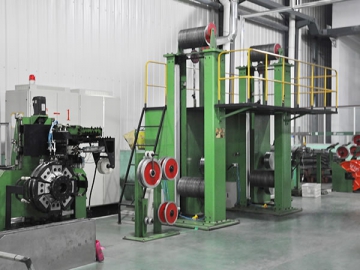

Hexagonal Bead Winding Line
Request a Quote
About Us: http://huahanmachine.com
Specifications
| Nominal Bead Range | 15" -25" (Single station 33" -51" ) | |
| Maximum Ribbon Width (mm) | 30 | |
| Strands of Bead Wire | 14 | |
| Line Speed (m/min) | 380 | |
| Rotating Speed (rpm) | 200 | |
| Screw Diameter of Cold-Feed Extruder (mm) | 65 | |
| L/D Ratio | 12:1 | |
| Compression Ratio | 1:1.06 | |
| Valid Storage Length (m) | 140 | |
| Overall Dimensions (mm) | L | 13,350 |
| W | 3,050 | |
| H | 3,500 | |
| Gross Weight (t) | 10 | |
