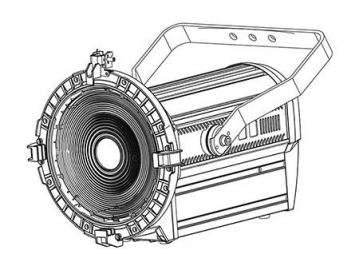

Stage Lighting LED Fresnel Spotlight Code SS811SSW HD/SC HD Stage Lighting
Request a Quote
Characteristics
- Master slave/interconnected multi - machine control
- Support DMX512 control
- Multiple DMX control modes
- Over-temperature protection
- Frequency flashing function
- Password protected keyboard
Technical Specifications
- Optical System
- Light source: 300W LED
- Color temperature: 3200K, 5600K
- Color rendering index: ≥90Ra
- CQS:＞90
- Optical angle: 15°-60°
- Electrical Connections
- Input voltage: 100-240VAC, 50/60Hz
- Rated power: 300W
- Drive current: 3A
- Power line: Power input and output, signal input and output
- Control System
- Dimmer: 0-100%16Bit
- Cooling system: Forced convection
- RTCP: DMX512
- Display: On board control, 0-20Hz strobe
- Channel mode: UNO(1CH), DOS(2CHS), STD.P(5CHS)
- Appearance
- Size: 485x333x322mm
- Weight: 7.8kg
- Shell: Extruded aluminum
- Color: Black
- Working Environment
- Ambient temperature: 0~45℃
- IP Rating: IP20
- Approvals
- Certification
- CE, MET
Dimensions
Illumination Contours

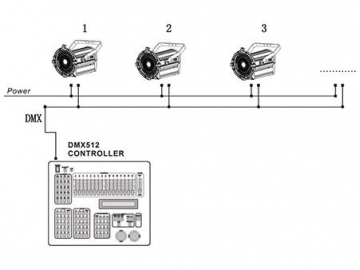

Installations
Optional Accessories
