Stage Lighting LED Profile Spot Code SS827SW HD/SC HD Stage Light
Request a Quote
Characteristics
- Master slave/interconnected multi - machine control
- Support DMX512 control
- Multiple DMX control modes
- Over-temperature protection
- Gray scale level 16 bits
- Frequency flashing function
- Password protected keyboard
Technical Specifications
- Optical System
- Light source: 250W LED
- Color temperature: 3200K, 5600K
- Color rendering index: ≥90Ra
- CQS: ＞90
- Optical angle: 5°, 10°, 19°, 26°, 36°, 50°, 15°-30°, 25-50°
- Electrical Connections
- Input voltage:100-240VAC, 50/60Hz
- Rated power: 250W
- Drive current: 3.3A
- Power line: Power input and output, signal input and output
- Control System
- Dimming: Dramatic dimming effect (0-100%16Bit dimming)
- Cooling system: Forced convection
- RTCP: DMX512, RDM
- Functional effect: Display panel-controlled static state and 0-20Hz strobe effect
- Channel mode: UNO(1CH), DOS(2CHS), STD.P(3CHS)
- Appearance
- Size: 645x370x525mm
- Weight: 9.6kg
- Shell: Die-casting aluminum
- Color: Black
- Working Environment
- Ambient temperature: 0~45℃
- IP Rating: IP20
- Approvals
- Certification
- CE, MET

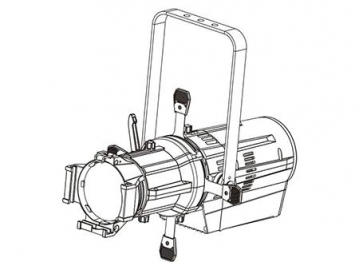

Dimensions
Illumination Contours

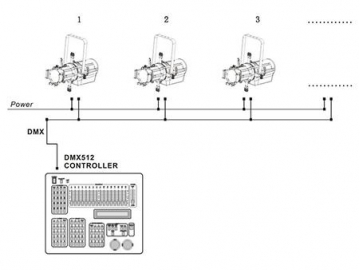

Installations
Optional Accessories
