Application
The YONG-FENG F51N workshop hose crimper is controlled by CNC. The crimp force of YONG-FENG F51N crimper is 3600KN, with a crimp range of 6~88mm and 14 sets of standard dies. YONG-FENG F51N crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, water hoses and medical hoses etc.

Max. inner diameter
Industrial hoses: 2½"
Hoses with 2 braided wires: 2"
Hoses with 4 spiral wires: 2"
Low pressure hoses φ6, φ8, φ10, φ12

Specification
Crimp head material FORGE STEEL
Crimp range 6-88mm
Hose size 2", 4SN
Max. Crimp range 118mm
Opening without dies 118mm
Opening +25mm
System pressure 31.5Mpa
Crimp force 3600kN
Drive 3kw/4kw
Standard voltage Customized
Control CNC
Standard dies 14 sets
Weight 270kg
L x W x H 820*510*1140mm

Specification of dies

High pressure dies:
No. Φ6 Φ8 Φ10 Φ13 Φ16 Φ19 Φ25 Φ32 Φ38 Φ51
Crimp range 15-25mm 18-28mm 20-30mm 23-33mm 26-36mm 29-39mm 37-47mm 46-56mm 51-61mm 63-73mm
Length 45mm 45mm 45mm 50mm 65mm 65mm 80mm 80mm 80mm 80mm

Low pressure dies:
No. Φ6 Φ8 Φ10 Φ12
Crimp range 6-16mm 8-18mm 10-20mm 12-22mm
Length 35mm 35mm 35mm 35mm

Details

CNC crimping machine
CNC crimping machines have obvious advantages over traditional crimpers:
  • The digital controlled operation panel is clear and easy to understand with simple operation.

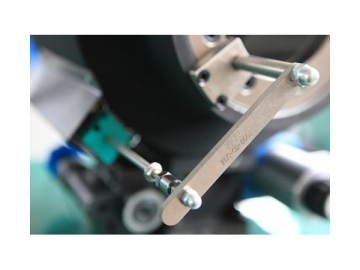

  • The traditional manual adjustment is replaced by the electrical ruler, with a crimping precision of 0.01mm, which is 10 times of that of traditional crimpers.
  • The crimping is not only more precise, but also nicer and neater.

Hydraulic conduction system

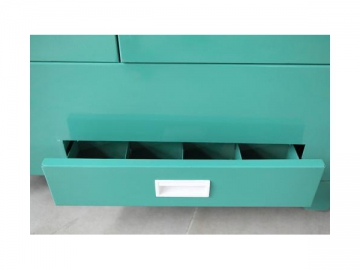

The cabinet can operate on the ground. There is no need for an extra worktable, and the crimping operation is convenient. There is a special drawer for dies in the cabinet, which saves space and provides convenience for collecting dies of different models.


Material
The oil cylinder cover, oil tank and piston rod are made of 40 chromium, which is high pressure resistant and tear resistant with great impact absorbing and carrying capacity.


Die connection
Our crimping dies are made of Cr12 die steel and connected through magnetism, which makes it convenient for assembly and disassembly, and the crimping is neat and nice.
