Description
The die cutting machine 1050 type flatbed die cutter can handle 7500 sheets of carton board materials, with a maximum carton output of 2000g/m². This cutter is suitable for large-format die-cutting of various papers, carbon boards and corrugated boards.

Since this die cutting system has no automatic stripping function, its purchase cost is lower. Thus it is a good option for cardboard box machinery to those with lower budgets.

Processed materials
  • Paper
  • Carbon board
  • Corrugated board
Parameters
Processed materials
Paper 80 g/m²
Maximum carbon board 2000 g/m²
Maximum corrugated board 4 mm
Capability
Min. Sheet size 350 x 400 mm
Max. Sheet size 740 x 1050 mm
Speed 7500 sheets/h
Die-cutting force 300 Ton
Converting
Max. Cutting size  730 x 1040 mm
Min. Gripper margin  9.5 mm
Pile height
Feeder 1650 mm
Delivery 1300 mm
Dimensions and Weight
L x W x H 6.17 x 4.2x 2.45 m
Weight  17 Ton
Installation
Power 25 kW
Compressed air 6 bar
Air compressor capacity 15 m³/h
Air tank capacity 100 L
Components of the die-cutter

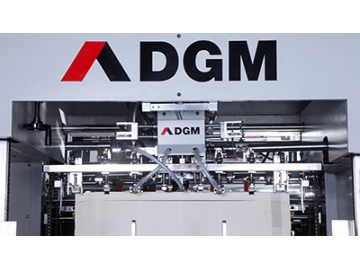

  • Feeder section

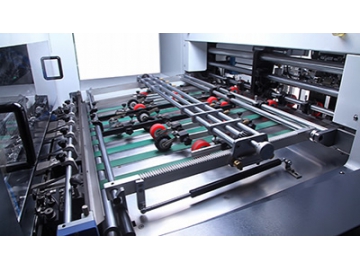

  • Register table

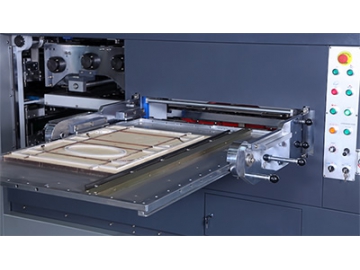

  • Press section

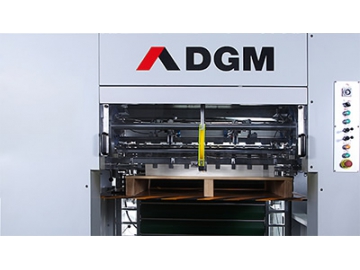

  • Delivery section
