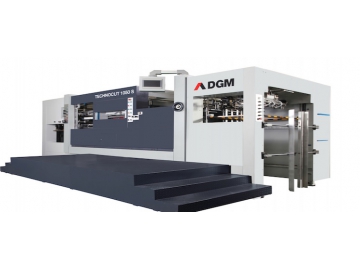

Die Cutting Machine 1050-S type Flatbed Die Cutter, Automatic Cutting Press Line
Request a Quote
Description

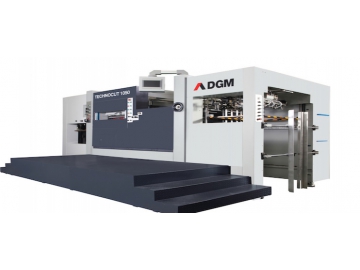

The most significant characteristic of the 1050-S type flatbed die cutter is its automatic stripping capability. This die cutting system adopts a quick locking and central positioning system. It also cooperates with the cam for curvilinear movement to allow the processed waste of precise discharging.
This die cutting machine can process 7500 sheets of carton boards per hour. The maximum processed carton box reaches up to 2000 g/m². It is especially suited for large-format die-cutting of various papers, carbon boards and corrugated boards.
Processed materials- Paper
- Carbon board
- Corrugated board
Processed materials
| Paper | 80 g/m² |
| Maximum carbon board | 2000 g/m² |
| Maximum corrugated board | 4 mm |
| Min. Sheet size | 350 x 400 mm |
| Max. Sheet size | 740 x 1050 mm |
| Speed | 7500 sheets/h |
| Die-cutting force | 300 Ton |
| Max. Cutting size | 730 x 1040 mm |
| Min. Gripper margin | 9.5 mm |
| Feeder | 1650 mm |
| Delivery | 1300 mm |
| L x W x H | 7.1 x 4.28 x 2.45 m |
| Weight | 17 Ton |
| Power | 25 kW |
| Compressed air | 6 bar |
| Air compressor capacity | 15 m³/h |
| Air tank capacity | 100 L |
-
Feeder section

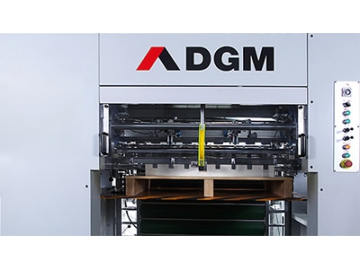

- Continuous feeder without interruptions, feeding through pallets or carts
- Material loading by pallets or carts

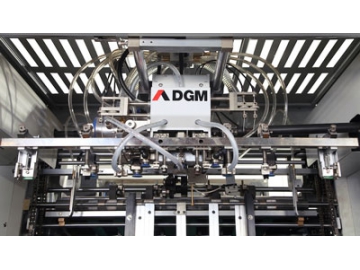

- Designed with 4 lifting suckers and 4 forwarding suckers, ensuring smooth feeding of cardboard and corrugated board with different thicknesses in an efficient, reliable, and precise manner
- Double sheet detector
-

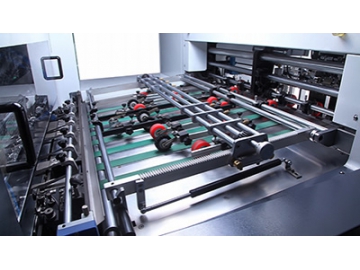

Register table
- Quick changeovers, easy adjustment for sheet size
- The sheet alignment on the side can be easily made on the register table with guide rails.

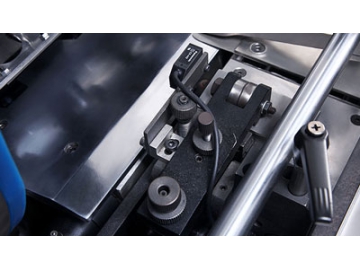

- 4 front register lays, independently adjustable
-
Side aligner
- Quick changeover, easy size adjustment
- Left and right edge aligned with guide
- 4 Front register lays, individually controlled
-
Press section
- The die cutter chase is designed with a central positioning system for fast positioning of the die.
- Cutting die with 5 mm thickness
- The pressure can be easily adjusted through the touch screen. Adopting over-pressure protection avoids any damage in the press.
- Available with manual or automatic lubrication system.
- 7 light weight gripper bars

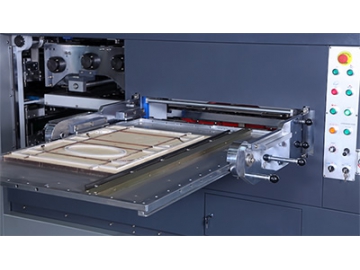

- Changer-over bracket for cutting chase and honeycomb chase.
- Pneumatic lock and release system for cutting chase and honeycomb chase.
-
Foil stamping system
- The heating system features 12 temperature zones with individual temperature control.
- Foil break detector
- Foil fasten device
- Foil unwind device

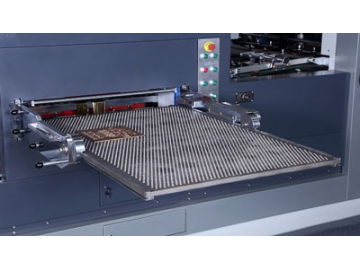

- Honeycomb chase
-
Delivery section
- Automatic delivery with non-stop curtain
