Resistance Spot Welding, 35KVA AC Welder

Resistance Spot Welding, 35KVA AC Welder
Resistance Spot Welding, 35KVA AC Welder
Resistance Spot Welding, 35KVA AC Welder
Request a Quote

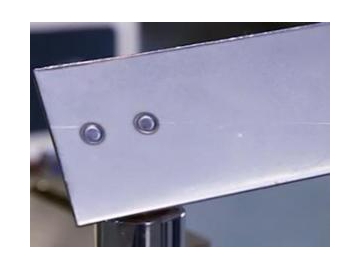

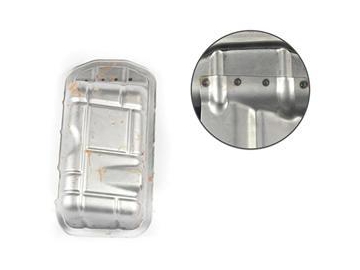

35KVA AC welders are primarily used for the welding of iron, copper, aluminum, stainless steel and other materials. With 35KVA of power, resistance spot welding is used to weld plates with a thickness of 2+2mm and wires with a diameter of 5+5mm. The arm length of the 35KVA AC Welder is 420mm, and be customized to meet customer requirements. We can also customize the electrode head.

Parameters
Model DN-35
Rated capacity 35KVA
Rated voltage input 380V/50hz
Max shot-cut current 15KA
Max welding input 79KVA
Duty cycle 15%
Arm dimension 200*420mm
Max. pressing force 2500N
Cylinder stroke 60mm
Consumer of cooling water ≥3L/min
Electrode head Φ13mm
Electrode holder Φ20mm
Electrode arm Φ44mm
Max Welding ability 2+2mm
Weight 215kg
Dimension 950*430*1450mm
For more information, please click here
