Lapping and Polishing Machine

Features
1. Our lapping and polishing machinehas the advantages of high efficiency, smooth finish, and good polishingquality.
2. With high precision spindle, infinitely variable speed, pneumatic press and
multistage packaging, the lapping andpolishing machine can grind and polish the products with high processingquality.

Application
Our lapping and polishing machine is usedfor the grinding and polishing of diamonds, hard alloys, ceramics and gems.

Technical Parameters

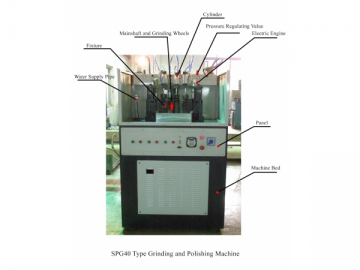

Specification of SPG40 Lapping and Polishing Machine

Dimension

Electronic Spindle

Motor

3-Phase Power Water Pump

Work Light

Grinding Wheel

Specification

ADF170-2Z/4

DWNEEREN

DB-100

JL50D-1

300*75*50*4(mm)

Quantity

1

3

1

1

1

Voltage

380V

24V

380V

24V

----

Power

4000W

30W

250W

50W

----

Pump Lift

----

----

4M

----

----

Flow Volume

----

----

100 L/min

----

----


Material
The lapping and polishing machine uses electronic spindle, 3-Phase powerwater pump and diamond grinding wheel.

Packaging
The lapping and polishing machine is packaged in a wooden box.

Service
We offer 12 hours of on lineservice.

World is a lapping machine manufacturer and supplier, based in China. We offer polishing machine, diamondglass cutter, and PCBN external threading tool.  Our high quality products are offered atcompetitive prices.  The full chain ofmanufacturing PCBN blank and PDC cutter can be completed in China, even in one city.  Our lower manufacturing cost saves yourpurchasing cost.  More details of eachproduct are shown on the page with description.
