Request a Quote
Recommended application

The polyurethane sole/insole production line is used for the production of polyurethane, breathable athletic shoe insoles, insole cushions, memory foam insoles, and slip/wear resistant insoles.

Application
Technical parameters
Raw material viscosity (22℃) Polyhydric alcohol: 3000MPas
Polyisocyanate: 1000MPas
Injection flow rate 20-90g/s
Mix ratio 100:50~100:150
Injection time 0.5~99.99 S (Accurate to 0.01 S)
Material temperature control error ±2℃
Repeated injection accuracy ±1%
Volume of tank 120L
Production line operation speed 3-10m/min
Heating power 25Kw
Input voltage three-phase five-wire, 380V
Detailed drawing
  • Main engine of PU foam machine
  • Metering pump
  • Feed pump
  • High efficiency mixing head
  • Annular workbench
  • Operation panel
  • Taiwan Fatek PLC control system
  • Schneider AC contactor
  • Taiwan AirTAC cylinder
  • Raw material tank

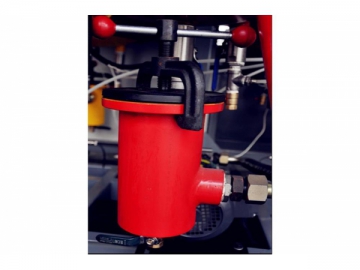

  • Raw material filter tank
  • Cleaning fluid tank
Features

The PU shoe sole\insole production line is equipped with 60 working carts, and each product mold is placed in order, from 1 to 60, in each working cart. The weight of the PU foam material that needs to be infused with the corresponding serial number mold is programmed in advance using the PLC control systems. The 60 workstations correspond to the molds on the cart.

The user can personally set the flow rate of each workstation. During the production process, each workstation needs to accurately correspond to the related mold, thus simultaneously producing 60 different products.

Models

This is the product table for customers to choose from. If you do not find a model that suits your needs, contact Lingxin directly, and we will customize polyurethane equipment to meet all of your production needs.

LXPU-SPU-20 Polyurethane Foam Equipment for PU Shoe Sole Cushioning
Foam type Injection flow rate Volume of tank Total power Size
Flexible foam 20g/s 120L 30KW 19000×1800×1500mm

LXPU-SPU-60 Polyurethane Foam Equipment for PU Shoe Sole Cushioning
Foam type Injection flow rate Volume of tank Total power Size
Flexible foam 60g/s 120L 30KW 19000×1800×1500mm

LXPU-SPU-90 Polyurethane Foam Equipment for PU Shoe Sole Cushioning
Foam type Injection flow rate Volume of tank Total power Size
Flexible foam 90g/s 120L 30KW 19000×1800×1500mm
