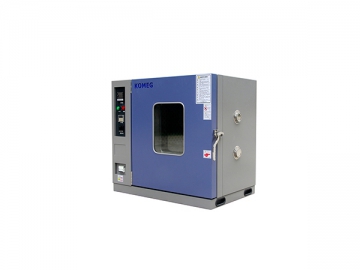

Industrial Drying Oven
Request a Quote
The industrial drying oven is designed for drying, sterilizing, insulating or heating.
Non-volatile material in schools, chemical plants, food factories, research institutions and other locations. The exterior material is coated with a high quality steel plate, and the interior material is rough or mirror stainless steel plate. Interior steel plates are welded using argon-arc welding. KOMEG has industrial drying ovens available in a variety of dimensions to meet different customer requirements. We can also customize equipment to meet customer requirements.
| Model | KOV-50 |
| Interior dimensions (W*H*D) | 400*350*350mm |
| Machine dimensions (W*H*D) | 1010*650*760mm |
| Power | 3.5KW |
| Power supply | AC220V±10% 1Φ 50Hz/60Hz |
| Temperature range | 50 ºC~ 200 ºC( 300 ºC) |
| Temperature fluctuation | ±1.0 ºC |
| Temperature uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) |
| Heating time | 50 ºC to 200 ºC within 50 min |
| Interior material | Stainless steel |
| Exterior material | Vanished stainless steel |
| Insulated material | Glass wool |
| Model | KOV-200 |
| Interior dimensions (W*H*D) | 600*600*600mm |
| Machine dimensions (W*H*D) | 1260*900*1100mm |
| Power | 4.5KW |
| Power supply | AC220V±10% 1Φ 50Hz/60Hz |
| Temperature range | 50 ºC~ 200 ºC( 300 ºC) |
| Temperature fluctuation | ±1.0 ºC |
| Temperature uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) |
| Heating time | 50 ºC to 200 ºC within 50 min |
| Interior material | Stainless steel |
| Exterior material | Vanished stainless steel |
| Insulated material | Glass wool |
| Model | KOV-290 |
| Interior dimensions (W*H*D) | 600*950*500mm |
| Machine dimensions (W*H*D) | 870*1590*640mm |
| Power | 4.5KW |
| Power supply | AC 380V±10% 3Φ4wire 50Hz/60Hz |
| Temperature range | 50 ºC~ 200 ºC( 300 ºC) |
| Temperature fluctuation | ±1.0 ºC |
| Temperature uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) |
| Heating time | 50 ºC to 200 ºC within 50 min |
| Interior material | Stainless steel |
| Exterior material | Vanished stainless steel |
| Insulated material | Glass wool |
| Model | KOV-500 |
| Interior dimensions (W*H*D) | 800*1050*600mm |
| Machine dimensions (W*H*D) | 1160*1760*880mm |
| Power | 6KW |
| Power supply | AC 380V±10% 3Φ4wire 50Hz/60Hz |
| Temperature range | 50 ºC~ 200 ºC( 300 ºC) |
| Temperature fluctuation | ±1.0 ºC |
| Temperature uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) |
| Heating time | 50 ºC to 200 ºC within 50 min |
| Interior material | Stainless steel |
| Exterior material | Vanished stainless steel |
| Insulated material | Glass wool |
| Model | KOV-600 |
| Interior dimensions (W*H*D) | 1000*1000*600mm |
| Machine dimensions (W*H*D) | 1360*1720*880mm |
| Power | 6.5KW |
| Power supply | AC 380V±10% 3Φ4wire 50Hz/60Hz |
| Temperature range | 50 ºC~ 200 ºC( 300 ºC) |
| Temperature fluctuation | ±1.0 ºC |
| Temperature uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) |
| Heating time | 50 ºC to 200 ºC within 50 min |
| Interior material | Stainless steel |
| Exterior material | Vanished stainless steel |
| Insulated material | Glass wool |
| Model | KOV-1000 |
| Interior dimensions (W*H*D) | 1000*1000*1000mm |
| Machine dimensions (W*H*D) | 1300*1750*1000mm |
| Power | 8.5KW |
| Power supply | AC 380V±10% 3Φ4wire 50Hz/60Hz |
| Temperature range | 50 ºC~ 200 ºC( 300 ºC) |
| Temperature fluctuation | ±1.0 ºC |
| Temperature uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) |
| Heating time | 50 ºC to 200 ºC within 50 min |
| Interior material | Stainless steel |
| Exterior material | Vanished stainless steel |
| Insulated material | Glass wool |
| Model | KOV-1800 |
| Interior dimensions (W*H*D) | 1600*1400*600mm |
| Machine dimensions (W*H*D) | 1600*1940*1200mm |
| Power | 9.5KW |
| Power supply | AC 380V±10% 3Φ4wire 50Hz/60Hz |
| Temperature range | 50 ºC~ 200 ºC( 300 ºC) |
| Temperature fluctuation | ±1.0 ºC |
| Temperature uniformity | ±2.0 ºC( 50 ºC~ 200ºC ) ±3.0 ºC( 101 ºC~ 200 ºC) |
| Heating time | 50 ºC to 200 ºC within 50 min |
| Interior material | Stainless steel |
| Exterior material | Vanished stainless steel |
| Insulated material | Glass wool |
- The vertical and compact industrial drying oven has a smaller footprint and saves space.
- The drying oven has a steady operation and low noise.
- Operators can set the temperature using a digital and intelligent LED temperature controller, which ensures operation is simple and the temperature control is precise.
- The air supply system and air outlet ensure the temperature remains uniform.
- The exhaust installed at the air outlet allows the heated air to decrease the drying oven's interior temperature, and prevents components from becoming damaged due to the high temperatures.
- The temperature of some oven models reaches up to 500℃
