Water Chiller for Laser
Request a Quote
Thewater chiller for laser is an indispensable part for safe and stable operation. Eastern Laser specially designs and promotes brand new CW series and SL series industrial water chillers, which feature superb and stable cooling performance, useful water flow alarm and high temperature alarm. Besides, the water chiller is convenient to move, easy to install and operate, and well received by laser machine manufactures. And the laser tube cooler is often used as laser engraving water chiller, laser marking water chiller, laser cutting water chiller, etc.

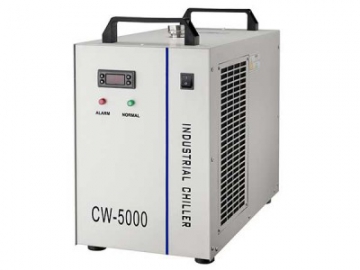

Technical Parameters of Water Chiller for LaserModel | CW3000 | CW5000 | CW5200 | SL-1 | SL-2 |
Operating voltage | 220V/110V | 220V/10V | 220V/110V | 220V/110V | 220V/110V |
Operating frequency | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz | 50Hz/60Hz |
Application | One laser tube with < 80W power | One laser tube with < 150W power | Two laser tubes with < 150W power | One laser tube with < 150W power | Two laser tubes with < 150W power |
Cooling capacity | - | 800W | 1400W | 800W | 1500W |
Temperature control accuracy | - | ±0.3℃ | ±0.3℃ | ±0.3℃ | ±0.3℃ |
Safety functions | Water flow alarm | Compressor overload protector, water flow alarm, high temperature alarm | |||
Water Tank Capacity | 6L | 6L | 6L | 5L | 8L |
Water inlet and outlet diameter | 10mm | 10mm | 10mm | 10mm | 10mm |
Maximum head | 10m | 12m | 12m | 10m | 15m |
Maximum flow rate | 10L/min | 13L/min | 13L/min | 10L/min | 15L/min |
Net weight | 9.5kg | 24kg | 26kg | 21kg | 40kg |
Gross weight | 12kg | 27kg | 29kg | 24kg | 43kg |
Shape Dimension | 49*27*38cm | 58*29*47cm | 58*29*47cm | 33*46*48cm | 34*46*64cm |
Packing size | 59*39*48cm | 70*43*58cm | 70*43*58cm | 45*58*60cm | 46*58*76cm |
