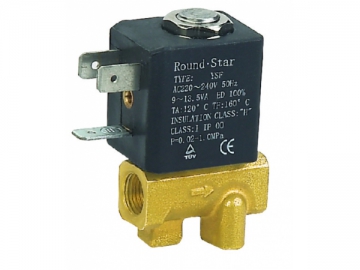

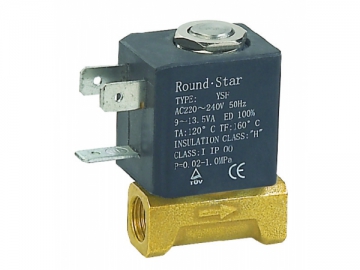

YSF Irons and Coffee Pot Solenoid Valve
YSF Irons and Coffee PotSolenoid Valve
Features
1.
2. Working pressure: 0.02～
3. Operating temperature: -5～
4. Acting pattern of the YSF irons and coffee pot solenoid valve: directacting.
5. Working pattern: normally closed.
6. Working voltage: AC220～
7. Voltage range: ±10%.
8. Insulation class: H.
9. Service life: 500000 times.
10. The YSF irons and coffee pot solenoid valve is sealed by theVITON or the silicon rubber.
11. Materials: brass.
Technical Parameters of the Irons
| Model | YSF-022 | YSF-023 | YSF-028 | ||||||
| Diameter mm | 1.5 | 2 | 2.5 | 1.5 | 2 | 2.5 | 1.5 | 2 | 2.5 |
| Working pressure bar | 0.2~12 | 0.2~10 | 0.2~10 | 0.2~12 | 0.2~10 | 0.2~10 | 0.2~12 | 0.2~10 | 0.2~10 |
Technical Parameters of the Coffee Pot Solenoid Valve
| Model | YSF-024 | YSF-024J (SUS316) | YSF-025 | YSF-025JK (SUS316) | YSF-024 Side Type | ||||||
| Diameter mm | 1.5 | 2 | 2.5 | 1.5 | 2 | 1.5 | 2 | 2.5 | 1.5 | 2 | 5.5 |
| Working pressure bar | 0.2~12 | 0.2~10 | 0.2~10 | 0~12 | 0~10 | 0.2~12 | 0.2~10 | 0.2~10 | 0~12 | 0~10 | 0~10 |
TechnicalParameters of the Universal
| Model | YSF-027 | YSF-026 | ||||
| Diameter mm | 1.5 | 2 | 2.5 | 1.5 | 2 | 2.5 |
| Working pressure bar | 0.2~12 | 0.2~10 | 0.2~10 | 0.2~12 | 0.2~10 | 0.2~10 |
Note: The products havebeen CE, TUV and ROHS certified.
YUYAO NO.4 INSTRUMENT FACTORY is a China-based ironssolenoid valve manufacturer and supplier. We offer coffee pot solenoid valve, plate liquid solenoid valve, gassolenoid valve and so on. Our highquality products are offered at competitive prices. We can complete the fullchain of manufacturing plastic solenoid valve, steam solenoid valve, etc. righthere in
