Automatic Non-Woven Bag Making Machine
Configurations and Functions
This automatic non-woven bag making machine is equipped with computer orientation system, photocell tracking system, and man-machine interface touch screen operation system, and meanwhile, it adopts high wave band ultrasonic heat-combining elements.
The automatic non-woven bag making machine is capable of completing the following functions, bag mouth inner folding, ribbon-through, stiletto, ultrasonic heat-combining, and cold-cutting, etc.
Applications
This automatic non-woven bag making machine is ideal for producing kinds of non-woven fabrics handle shopping bag, shoes bag, fashion t-shirt bag 15-50g. Our company also can design bag making equipment according to the customer's requirement on bag sizes.
Non-Woven Bag Making Machine Parameters
| Type | F500 | F800 |
| Production Speed | 20-100pcs/min | 20-100pcs/min |
| Bag Width | 100-800mm | 100-800mm |
| Bag Length | 200-420mm | 200-720mm |
| Bag-making Thickness | 15-50g | 15-50g |
| Power Supply | 380V/220V | 380V/220V |
| Total Power | 5Kw | 8Kw |
| Overall Dimension (L*W*H) | 9600*1500*1800mm | 9600*1800*1800mm |

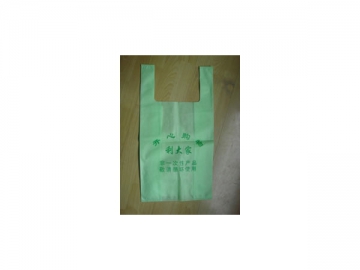

Non-woven Bag Samples:
