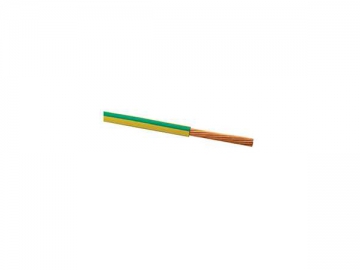

Oil Resistant and Waterproof Cable for submersible pump

Oil Resistant and Waterproof Cable for submersible pump
Request a Quote

Main Parameters
Product Name:
Oil resistant and waterproof cable for submersible pump
Product Standard:
GB5023.5-2008(IEC227-5)
Cable Model: RVV
Cable Specification: RVV 300/500V 0.75-2.5mm2 (3-5 cores)
Operating Temperature of Submersible Pump Cable : -0°C~40°C (Max. allowed temperature of conductor is 70°C)
Conductor Class: Class 5
Conductor Material: Anaerobic soft copper wire
Insulation Material of Oil Resistant And Waterproof Cable: High quality lead free PVC soft insulation material
Color of Insulation Core: Complies with GB5023.5-2008 ( IEC227-5)
Sheath Material and Color: High quality lead free, water proof and cold resistant elastic PVC material, black color
Burning Test: Conforms to the requirements for single cable vertical burning test specified by IEC60332-1.
DC Resistance of Conductor at 20°C: Complies with GB/T3956-1997 (IEC228)

Insulation Resistance at 70°C: Complies with GB5023.5-2008 (IEC227-5)
Finished Product Voltage Withstand Test: 2.0KV(AC)/5min, no breakdown
Lead Free Environmental Protection Performance: The content of heavy metal element in our cold resistant cable fully complies with EU RoHS.
Outstanding Performance: Waterproof, oil resistant, acid-proof, cold resistant
