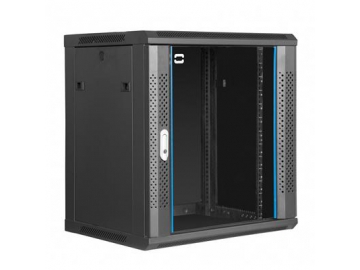

19" Assembly Wall Mount Enclosure
Description

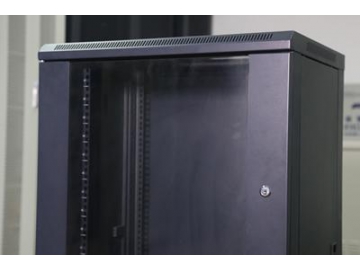

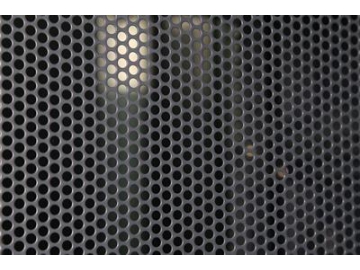

The 19" assembly wall mount enclosure is made of high quality SPCC cool rolled steel and welding technique. It is capable of bearing a 60kg load, and is ideal house for the network switch, router, hub and other network equipment and multimedia equipment. Users can choose a glass or mesh door on the front according to your needs, and fans, shelves and PDU are optional.
The 19" assembly wall mount enclosure complies with ANSI/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41494, PAR7, GB/T3047.2-92 standards and is compatible with ETSI, the metric system and the international 19 inch cabinet standard.
Surface finish: degreasing, pickling, phosphating, powder coating.
Material: high quality SPCC cool rolled steel

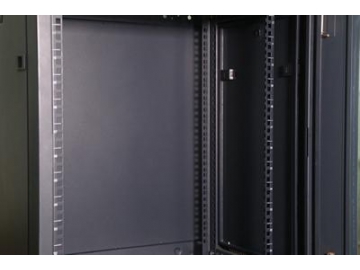

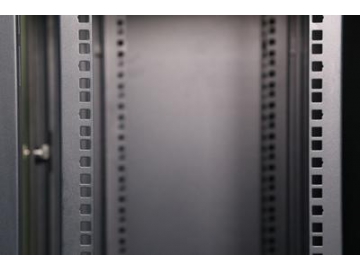

Rack rail with square holes thickness: 1.5mm
Color: major structure RAL9004 (black), RAL7035 (gray)
Details19" assembly wall mount enclosure (mm)
| Type | Width | Depth | Height | Rack unit | Type | Width | Depth | Height | Rack unit |
| SQ55450A04 | 550 | 450 | 274 | 4U | SQ55450A15 | 550 | 450 | 762 | 15U |
| SQ55500A04 | 500 | SQ55500A15 | 500 | ||||||
| SQ55600A04 | 600 | SQ55600A15 | 600 | ||||||
| SQ60450A04 | 600 | 450 | SQ60450A15 | 600 | 450 | ||||
| SQ60500A04 | 500 | SQ60500A15 | 500 | ||||||
| SQ60600A04 | 600 | SQ60600A15 | 600 | ||||||
| SQ55450A06 | 550 | 450 | 363 | 6U | SQ55450A18 | 550 | 450 | 895 | 18U |
| SQ55500A06 | 500 | SQ55500A18 | 500 | ||||||
| SQ55600A06 | 600 | SQ55600A18 | 600 | ||||||
| SQ60450A06 | 600 | 450 | SQ60450A18 | 600 | 450 | ||||
| SQ60500A06 | 500 | SQ60500A18 | 500 | ||||||
| SQ60600A06 | 600 | SQ60600A18 | 600 | ||||||
| SQ55450A09 | 550 | 450 | 496 | 9U | SQ55450A22 | 550 | 450 | 1073 | 22U |
| SQ55500A09 | 500 | SQ55500A22 | 500 | ||||||
| SQ55600A09 | 600 | SQ55600A22 | 600 | ||||||
| SQ60450A09 | 600 | 450 | SQ60450A22 | 600 | 450 | ||||
| SQ60500A09 | 500 | SQ60500A22 | 500 | ||||||
| SQ60600A09 | 600 | SQ60600A22 | 600 | ||||||
| SQ55450A12 | 550 | 450 | 629 | 12U | SQ55450A27 | 550 | 450 | 1295 | 27U |
| SQ55500A12 | 500 | SQ55500A27 | 500 | ||||||
| SQ55600A12 | 600 | SQ55600A27 | 600 | ||||||
| SQ60450A12 | 600 | 450 | SQ60450A27 | 600 | 450 | ||||
| SQ60500A12 | 500 | SQ60500A27 | 500 | ||||||
| SQ60600A12 | 600 | SQ60600A27 | 600 |
- The wall mounting process is simple and easy, and cabinet component assembly follows international standards.
- The cabinet rack is formed through a welding process, giving it a high structural strength.

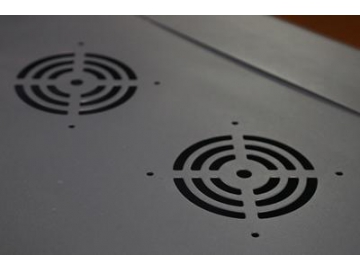

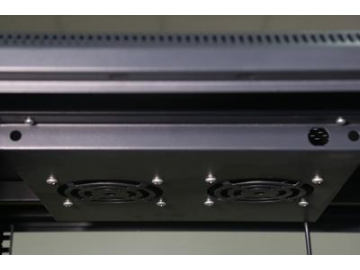

- 120mm fans are installed at the top of the cabinet, giving it an outstanding ventilation performance.

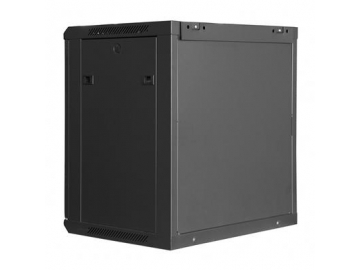

- The rear door is movable.
- Fiber optic cables and other cables can be inserted from the top and bottom of cabinet.
- IP Grade of IP20.
- Ingo can package the cabinet according to your requirements, and will do everything to make shipping your cabinet easy.
- If you can't find a suitable size, please contact us to customize the cabinet.
