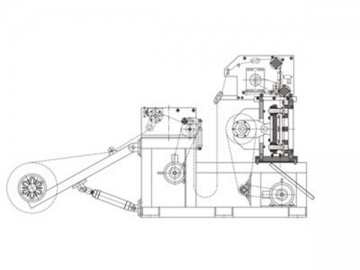

JCQ850 High Speed Punch Die Cutter
The JCQ850 high speed punch die cutter adopts automatic punching technology. It perfectly integrates the functions of roll paper slitting, die cutting, and waste cleaning. Eliminating the slitting procedure in traditional processing mode, our automatic die cutter supports direct punching with smooth cutting edge. Apart from low energy consumption and labor cost, the labor intensity is reduced and the paper utilization rate is improved, as well.
The high speed punch die cutter comes with PLC micro-computer control system and LCD human-computer interface, realizing automatic operation of the die cutting machine. Through the dynamic display, users can understand the working conditions and the machine failure directly, helping realize intelligent and trim paper collection. The automatic die cutting machinery is an ideal choice for the production of disposable paper bowl, paper cup, etc.
Operation Conditions
Environmental Temperature: -1℃ -35℃
Relative Humidity: less than 85%
Main Voltage Fluctuation: less than 10%
Ambient Environment: little flammable, combustible, or corrosive material. No severe vibration.
Die Cutting Mode | Punching (suitable for roll paper) |
Die Cutting Speed | 150-200 times/min |
Raw Material | 125-350g/m2 roll paper with the wide from 360 to 850mm. |
Roll Paper Diameter | <1.5m |
Paper Feed Speed | >35m/min (intermittent working) |
Compressed Air | 0.2mm/min, 0.5MPa |
Length of Roller Surface | 950mm |
Main Motor Power | 4kW |
Total Power | 8.5kW |
Machine Weight | 3 tons |
Machine Size (L×W×H) | 2900mm×1400mm×1700mm |
Electric Box Size (L×W×H) | 700mm×700mm×1350mm |
