CO2 laser marker is used for engraving non-metallic materials including cardboard, board, leather. It also can be used for cutting and hollow carving very thin materials.

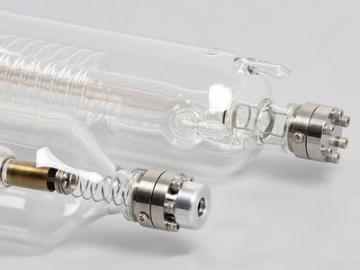

This machine use DC laser tube which is very cost-effective. It uses water cooling so you should take measure to prevent frost damage in cold environment.

This machine can be widely used in various industries for manufacturing packing boxes, packaging bags, films, food cans, drink bottles, cables, pipes, glasses, electronic components, communication devices, etc.

Applicable materials:
Wooden product, paper, leather, cloth, denim, plexiglass, epoxy resin, acrylic, unsaturated polyester resin, etc.

Features
  • CO2 laser marker has high quality laser beam and long service life.
  • High-speed scanning galvanometer mirror system ensures its high precision.
  • This machine has a human-oriented operation system and compatible with various graphic formats.
Technical Parameters
Model DF-100
Laser source RECI
Laser power (W) 100W
Marking scope(mm) 200*200, 300*300, 400*400, 600*600, 800*800
Marking speed ≤8000mm
Minimum character 0.4mm
Marking depth ≤5MM
Repeat position accuracy ±0.01MM
Cooling type Water cooling system
Acceptable graphic format PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG
Operating voltage AC 110/220V±10%, 50/60Hz
Operating temperature range 10-35 ℃
Operating humidity < 75% (non-condensing water)
Dimensions 2400*1100*1600mm
Machine power < 1250W
IP rating IP54
Laser safety class Class IV
