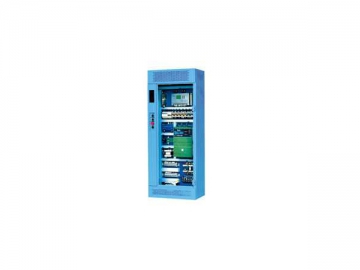

Parallel Hydraulic Elevator Control Cabinet

Parallel Hydraulic Elevator Control Cabinet
Request a Quote

The control function of the parallel hydraulic elevator control cabinet is implemented by our SM-01-DP parallel elevator control board. The control cabinet applies full parallel communication and is suitable for low-rise hydraulic driven cargo elevators.

Technical Parameters
Power requirement: 3 phase, AC380V-460V, 50/60Hz
Power range: 5KW-75kW
Maximum elevator speed: 1.0m/s
Number of floors: 5
Hydro-cylinder applicable: MCP-PYGM, GMV; MCP-PYBL, Belling
Main controller: SM-01-DPC
Drive mode: Star Delta Starter
Landing accuracy: ±5mm
Performance standard: GB7588/EN-81
Safety standard: JG5071-1996
Room temperature: -10℃-45 ℃
Color: light grey (optional)
Display mode: Seven segment code, BCD code, Gray code, Binary code
Dimension (mm): 1300×750×280

Standard Interface Description
Power interface: terminal
Adaptive electro motor: AC asynchronous motor
Door motor: AC220V variable frequency door motor
Machine room switches: speed governor / control cabinet stop switch / emergency electric operation switch / overhaul up button / overhaul down button
Hoistway switches: limit switch / buffer switch / broken step chain device / pit stop switch / speed reducing switch
Ceiling assembling switches: cab stop switch / ceiling assembling stop switch / safety gear / leveling switch / overload, full load, light load switch / light curtain switch / safety shoe switch
Illumination: AC220V (ceiling assembling, pit) / AC36V (ceiling assembling)
Intercom system: five-way calling system (four wire system)
Control cable interface: AMP plug-in plus binding post
Option configuration interface: arrival gong (electronic), arrival lamp, 6-layer to 10-layer control panel
Trailing cable: TVVBP**/**×0.75 2×2P×0.75 1×2.0 (equipped by function and floor)
Call cable: 4-core round cable/RVV4/2×2×0.75
Door lock cable: 3-core round cable/RVV3/2×0.75 1×2.0
Monitor cable: 12-core round cable/RVV12/11×0.75 1×2.0 (seven segment code for this model, other models depend on needs)
Hoistway switch cable: 19-core round cable/RVV19/18×0.75 1×2.0
Speed limit cable: 3-core round cable/RVV3/2×0.75 1×2.0

STEP is a parallel hydraulic elevator control cabinet manufacturer in China. We provide an extensive line of products, including elevator control cabinet, car controller board, fan inverter, general vector inverter, and more.
