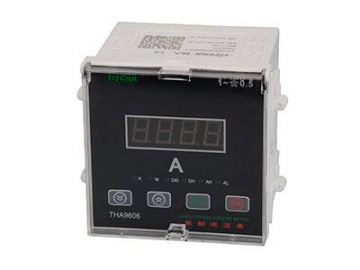

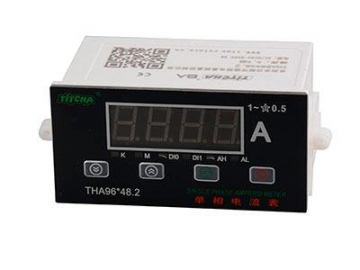

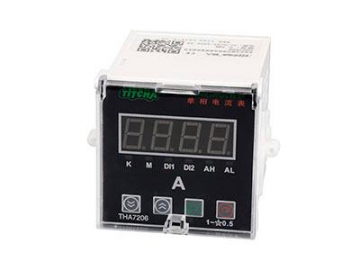

Intelligent Single-phase Ammeter
Request a Quote
-
THA48001
-
THA96*48001
-
THA72001
-
THA96001
Specifications
- Measurement: single phase current
- Display: a row of LED digital display
- Uses: Suitable for power grid, automatic control system. Mainly measure single-phase current parameters in the power grid
- Expansion: AC5A and above need to be equipped with transformer
- Communication: RS485 communication, MODBUS-RTU protocol
- Remote signaling function: real-time monitoring of 2-way digital input
- Avoidance control function: remote control realizes 2-way switch output
- Output function: realize 1 analog output
- Expansion: It can directly input signals from the current transformer to realize programmable setting of input parameter changes.
- Uses: incoming line, busbar and important distribution circuit
- Available in a variety of form factors: 120x120, 96x96, 80x80, 72x72, 48x96x48x48 for different switchgear
